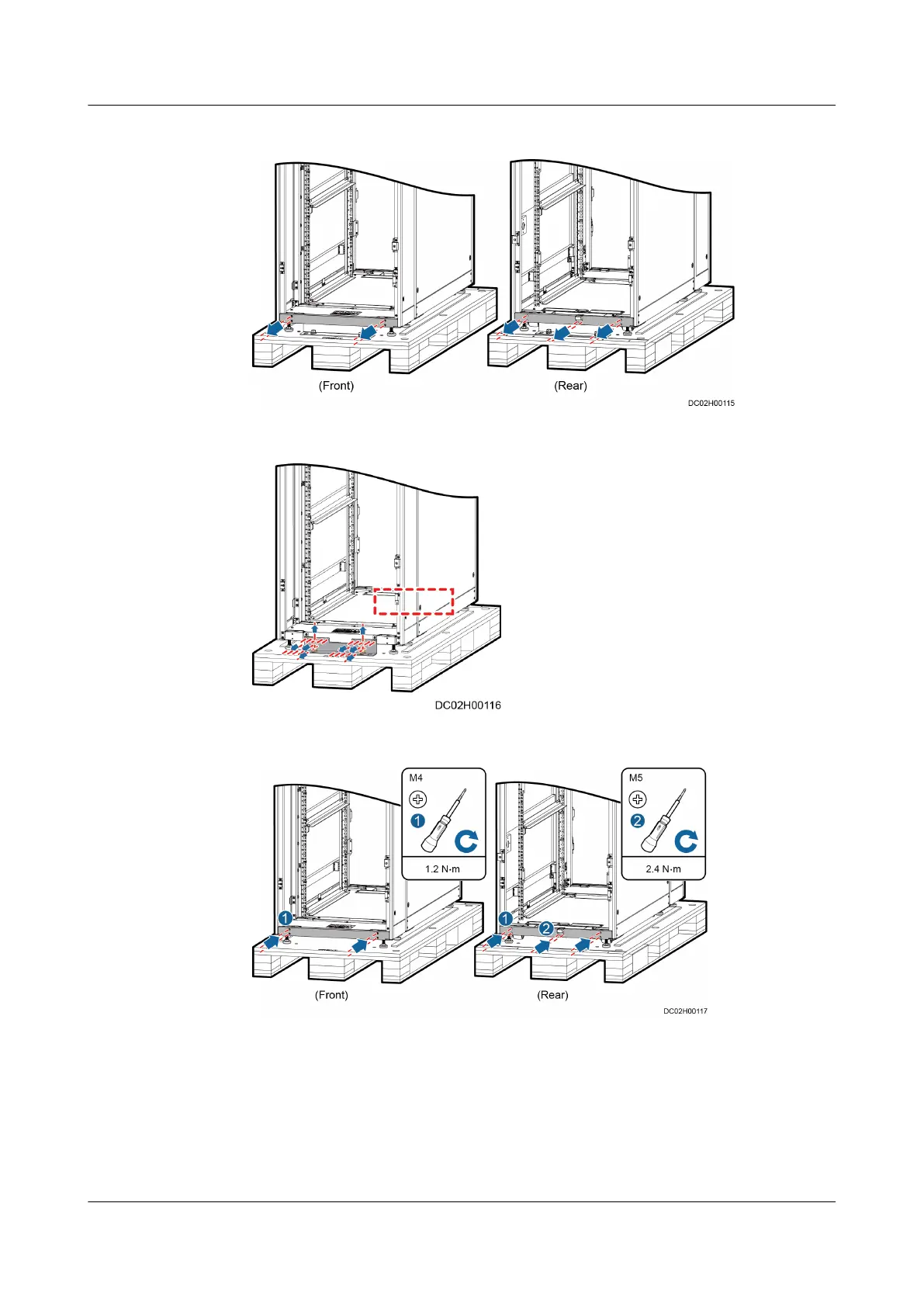

Figure 4-8 Removing the cabinet lower sealing plates
Figure 4-9 Removing the L-shaped brackets
Figure 4-10 Installing the cabinet lower sealing plates
3. Connect the ramps to the rear door side of the pallet and extend the ramps,
and then clamp the sliders at the bottom of the ramps, as shown in Figure
4-11. (Optional)
