Unpacking the Outdoor Unit
Step 1 Verify that the outdoor unit package is intact. If any damage is found, notify the
carrier immediately.
Step 2 Remove the package.
1. Remove the straps, outer packing materials, cushioning materials, and then
plastic lm.
2. Check that the outdoor unit exterior is intact and free of collision and
scratches. If any damage is found, notify the carrier immediately.
Step 3 Check the type and quantity of
ttings against the packing list. If some ttings are
missing or do not comply with the packing list, record the information and contact
your local Huawei
oce immediately.

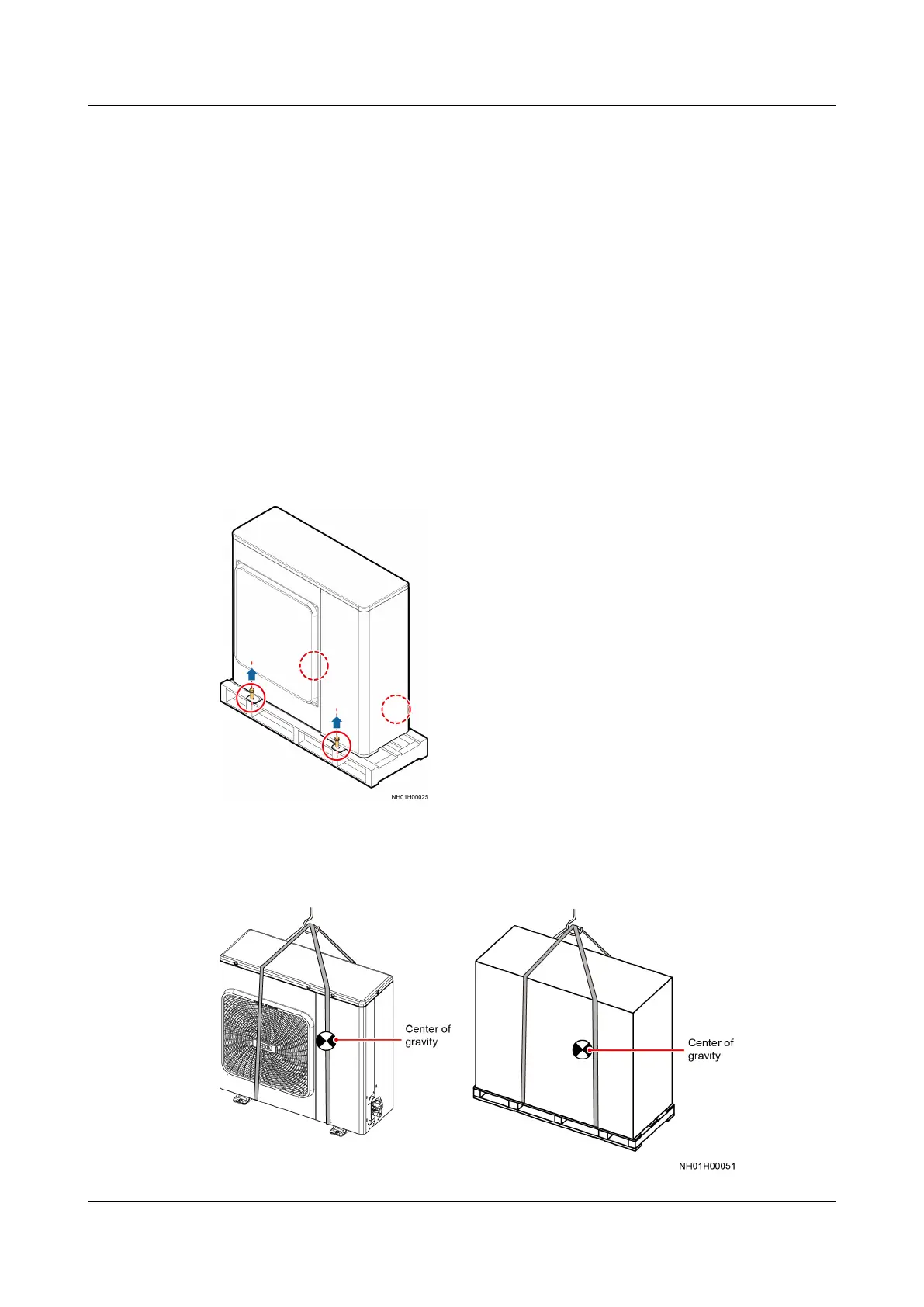

Step 4 After checking that the outdoor unit is intact, remove the four bolts that secure
the outdoor unit to the pallet, as shown in Figure 4-13.
Figure 4-13 Removing an outdoor unit
Step 5 If necessary, hoist the outdoor unit according to Figure 4-14, Figure 4-15, and
Figure 4-16 onsite. (Optional)
Figure 4-14 Hoisting a NetCol500-A018 outdoor unit
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 105
