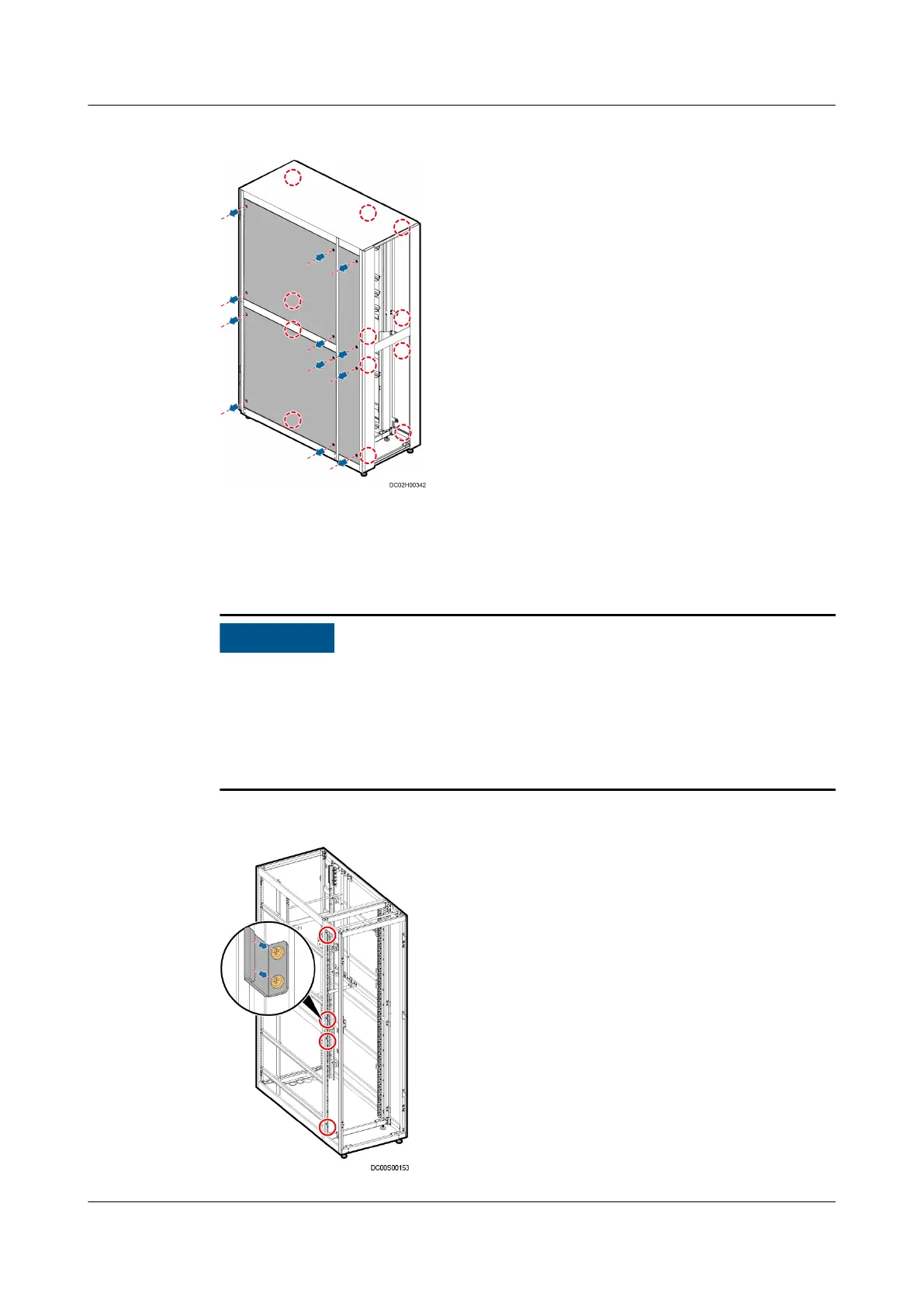

Figure 4-24 Removing aisle side sealing plates from the Converged Cabinet
Step 2 Remove other aisle side sealing plates in the same way.
Step 3 Secure the sealing plate fasteners to the aisle frame of the end cabinet using M5
tapping screws.
● The sealing plate fasteners are packed in the accessory package of the
Converged Cabinet.
● Align the sealing plate fasteners with those in front of the appropriate sealing
frame.
● Install other aisle sealing plate fasteners in the same way.
Figure 4-25 Installing sealing plate fasteners for an end cabinet
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 112
