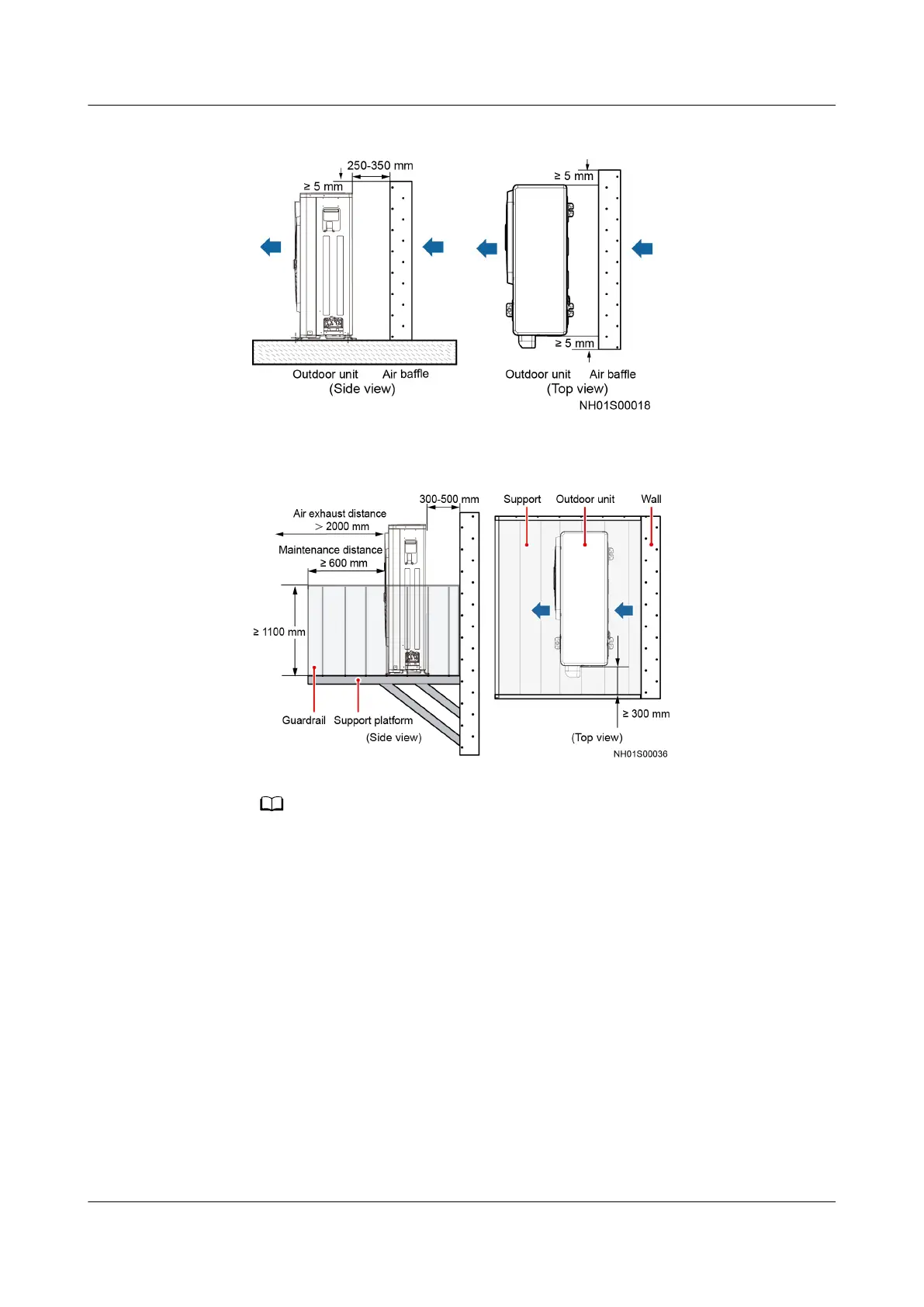

Figure 4-43 Space requirements for installing an air bae
● Installing an outdoor unit on a wall, as shown in Figure 4-44.
Figure 4-44 Requirements for installing an outdoor unit on a wall
● The bearing capacity of the support platform is more than 320 kg.
● Reserve no less than 300 mm from the left or right side of the outdoor unit for
maintenance personnel to walk.
● Grid structure is recommended to avoid the air exhaust and intake of the smart
cooling product being
aected by the guardrail structure.
● The picture is only for reference, adjust based on the on-site situation if necessary.
(Optional) Multiple Outdoor Units
When multiple outdoor units are to be installed, if they cannot be installed against
a wall or the local outdoor temperature may be below –10°C (NetCol500-A018) or
0°C (NetCol500-A020) or –10°C (NetCol500-A021), place an air
bae at the air
intake side of each outdoor unit.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 128
