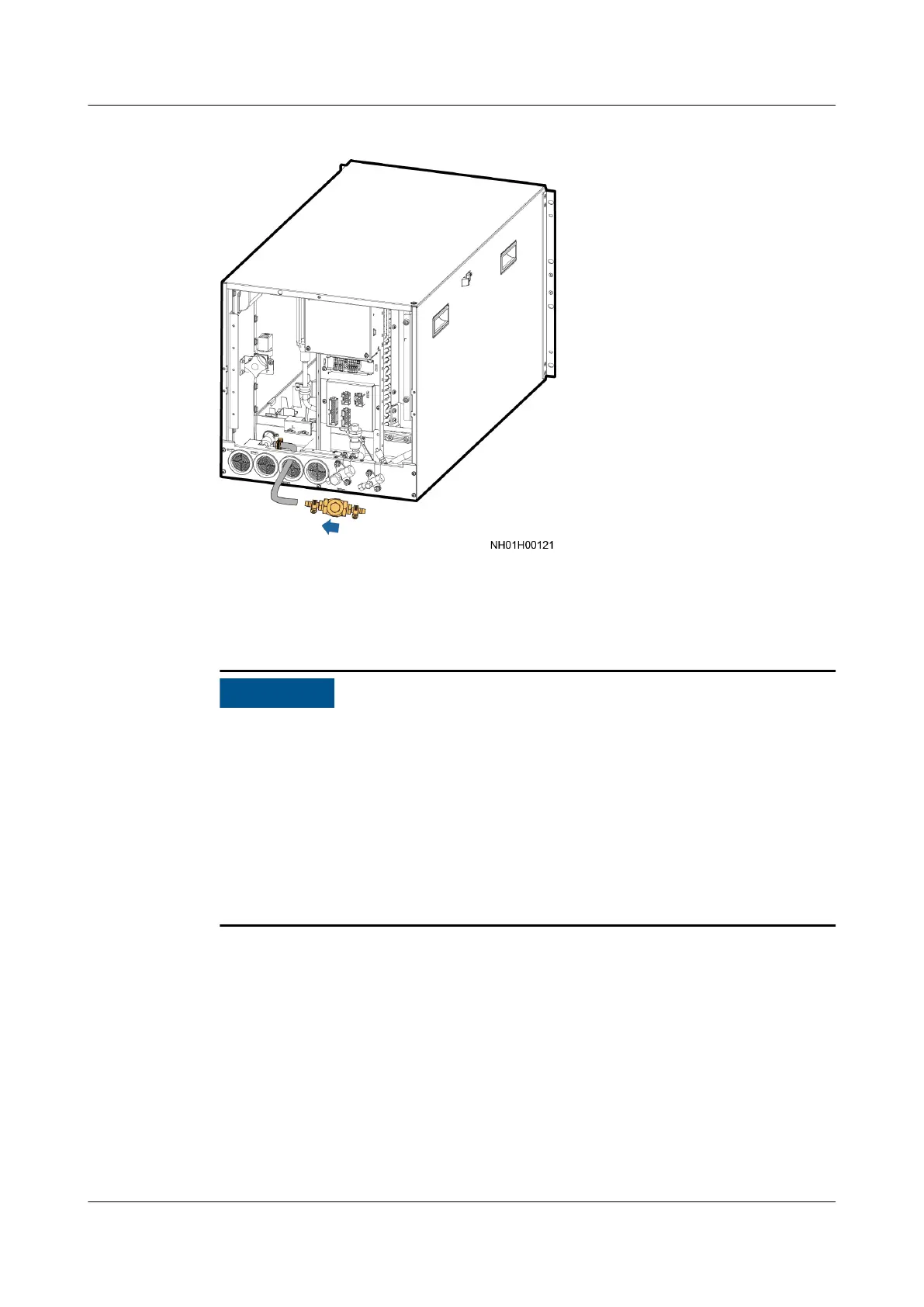

Figure 4-66 Connecting a drainpipe
Step 2 Secure the check valve and sheet metal to the right rack rail of the cabinet, as
shown in Figure 4-67.
Step 3 Connect the top drainpipe, as shown in Figure 4-67.
● An arrow on the check valve body indicates the ow direction. Ensure that the
water
ow direction is consistent with the direction of the arrow when the
drainpipe connects to the check valve.
● It is recommended that the check valve be installed in a position lower than
the smart cooling product; otherwise, water leaked from the check valve may
aect the running of the smart cooling product.
● After routing pipes, secure them to the pipe component using cable ties.
● The drainpipe inside the indoor unit should be wrapped with the thermal
insulation pipe in accessories.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 145
