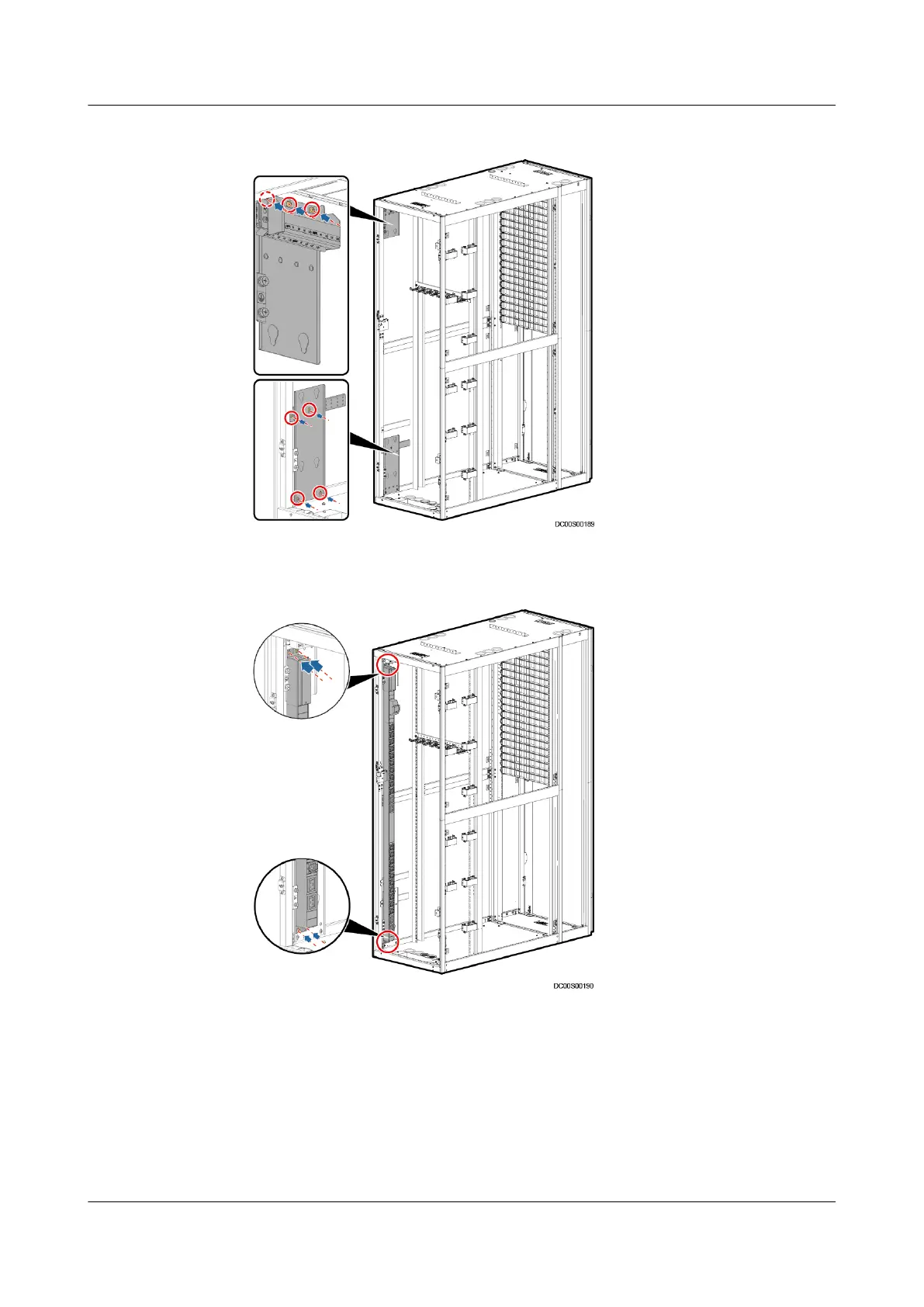

Figure 4-83 Installing a mounting kit
3. Secure the PDU2000 to the installation position using screws.
Figure 4-84 Installing a PDU2000
Step 4 (Optional) Install a horizontal PDU2000.
1. Open the rear door of the cabinet.
2. Secure the horizontal PDU2000 to the installation position using screws.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
