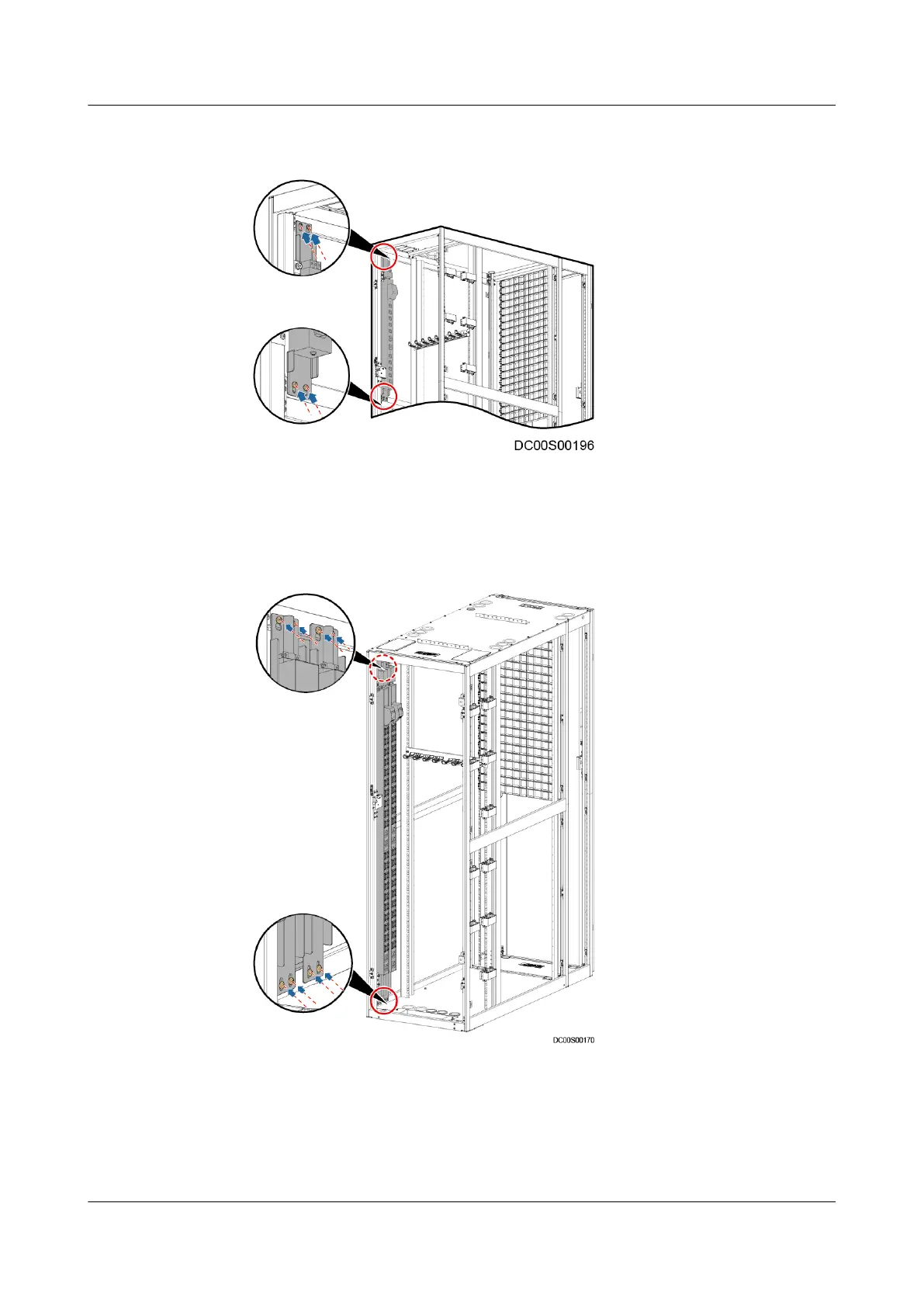

Figure 4-81 Installing a PDU2000 (in the IT cabinet with the second or third
smart cooling product)
Step 2 (Optional) Install a non-intelligent full-height PDU2000.
1. Open the rear door of the cabinet.
2. Secure the PDU2000.
Figure 4-82 Installing a PDU2000
Step 3 (Optional) Install an intelligent full-height PDU2000.
1. Open the rear door of the cabinet.
2. Install a mounting kit for the PDU2000.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 160
