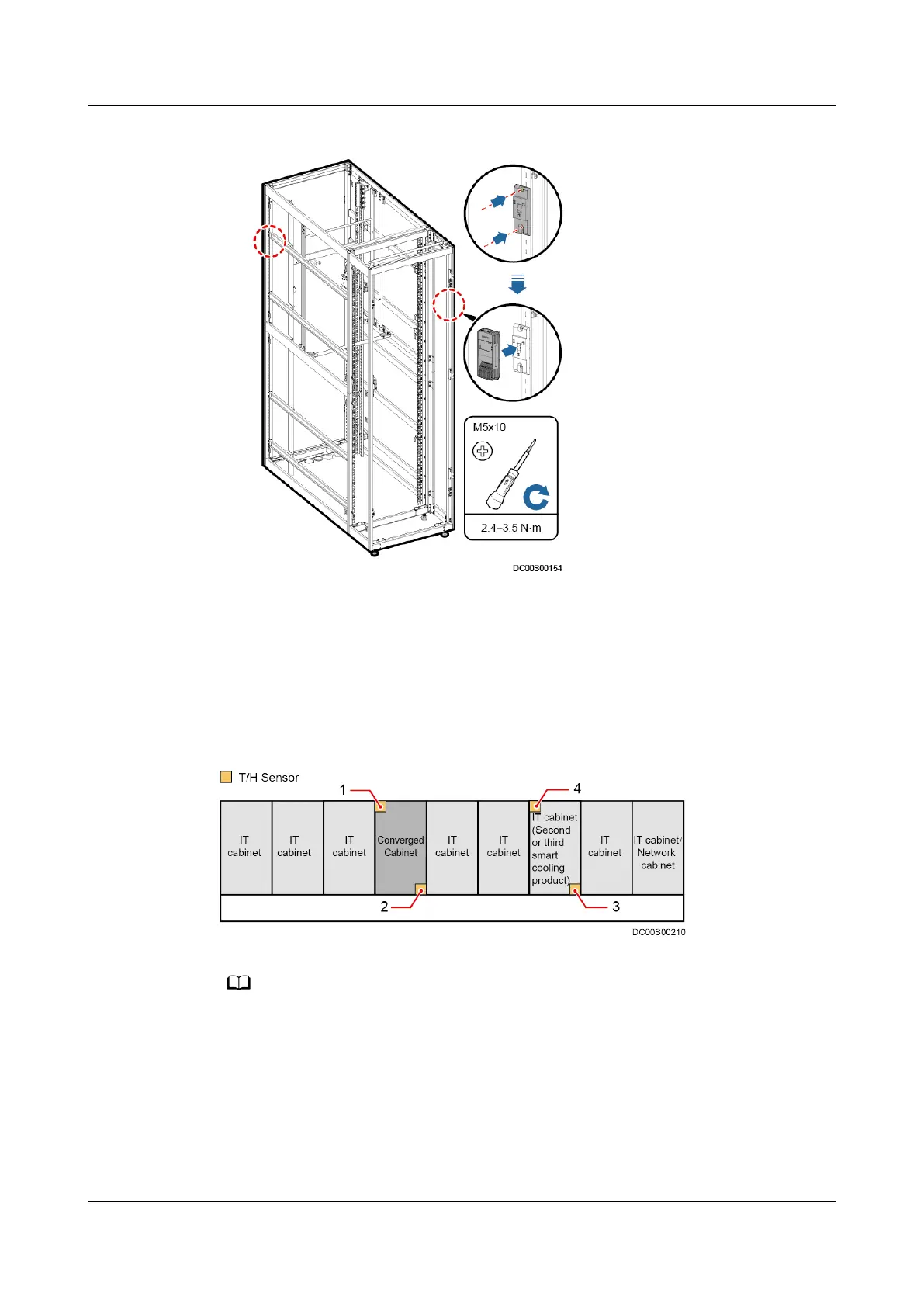

Figure 4-111 Installing an T/H sensor in an aisle
Step 2 Set device addresses for the T/H sensors.
Set the device address for a T/H sensor by operating the DIP switch on the sensor.
Toggle switches 1–6 are used to set the device address, toggle switch 7 is reserved,
and toggle switch 8 is used to switch the temperature display mode. The device
address is set in binary mode. 1 is the least
signicant bit, and 6 is the most
signicant bit. ON indicates 1, and OFF indicates 0. The address range is 1 to 4.
Figure 4-112 DIP switch
denitions for T/H sensors
The numbers 1–4 indicate the DIP switch settings of the T/H sensors.
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 176
