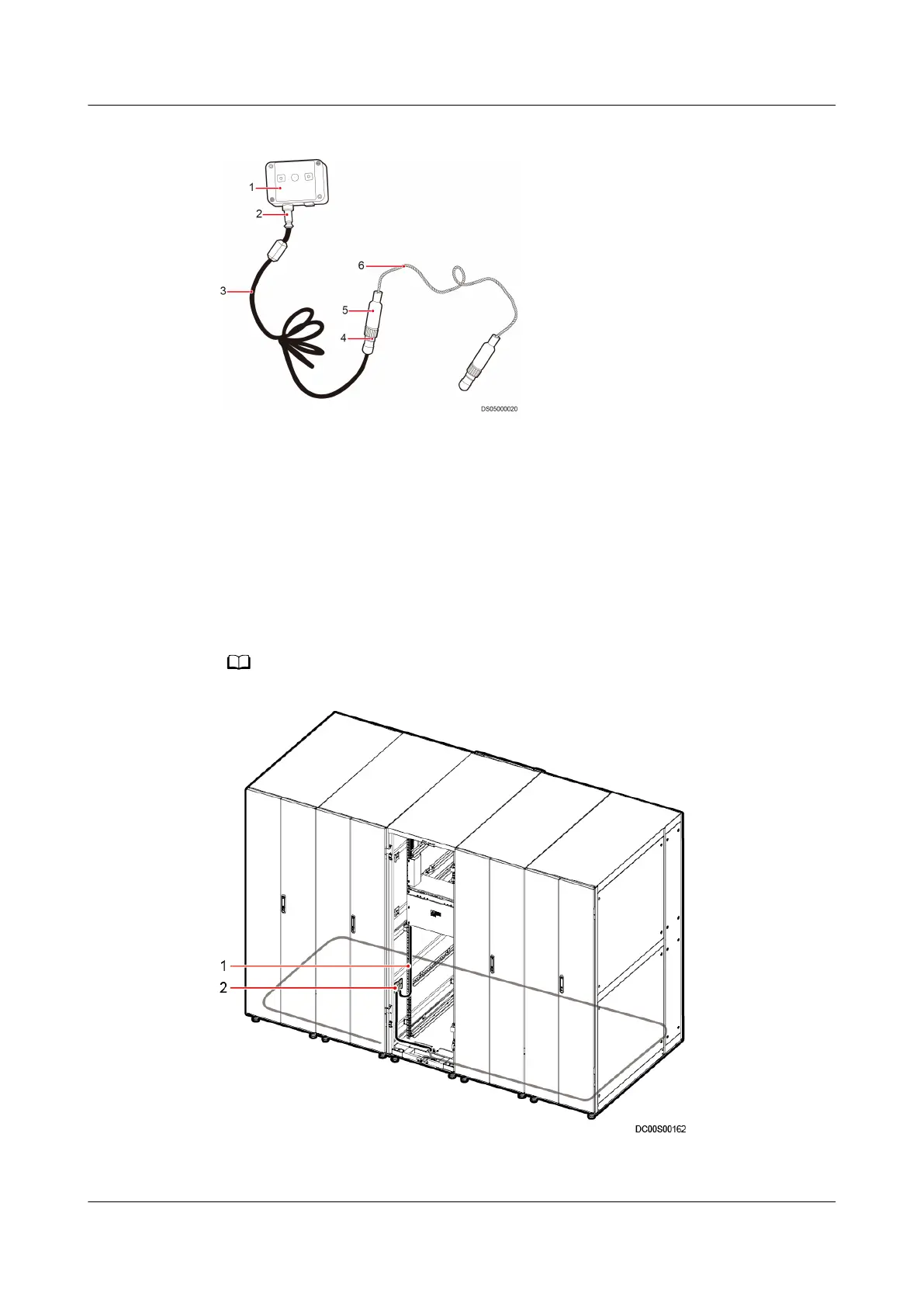

Figure 4-144 Water sensor
(1) Water detector (2) Conversion cable end A,
connected to the water
detector
(3) Conversion cable
(4) Conversion cable end B,
connected to the water
detection cable
(5) Water detection cable end
A, connected to the conversion
cable
(6) Water detection cable
Figure 4-145 Laying out the water detection cable
The following uses the ve-cabinet layout as an example.
(1) Water detector cable
(2) Water detector
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 195
