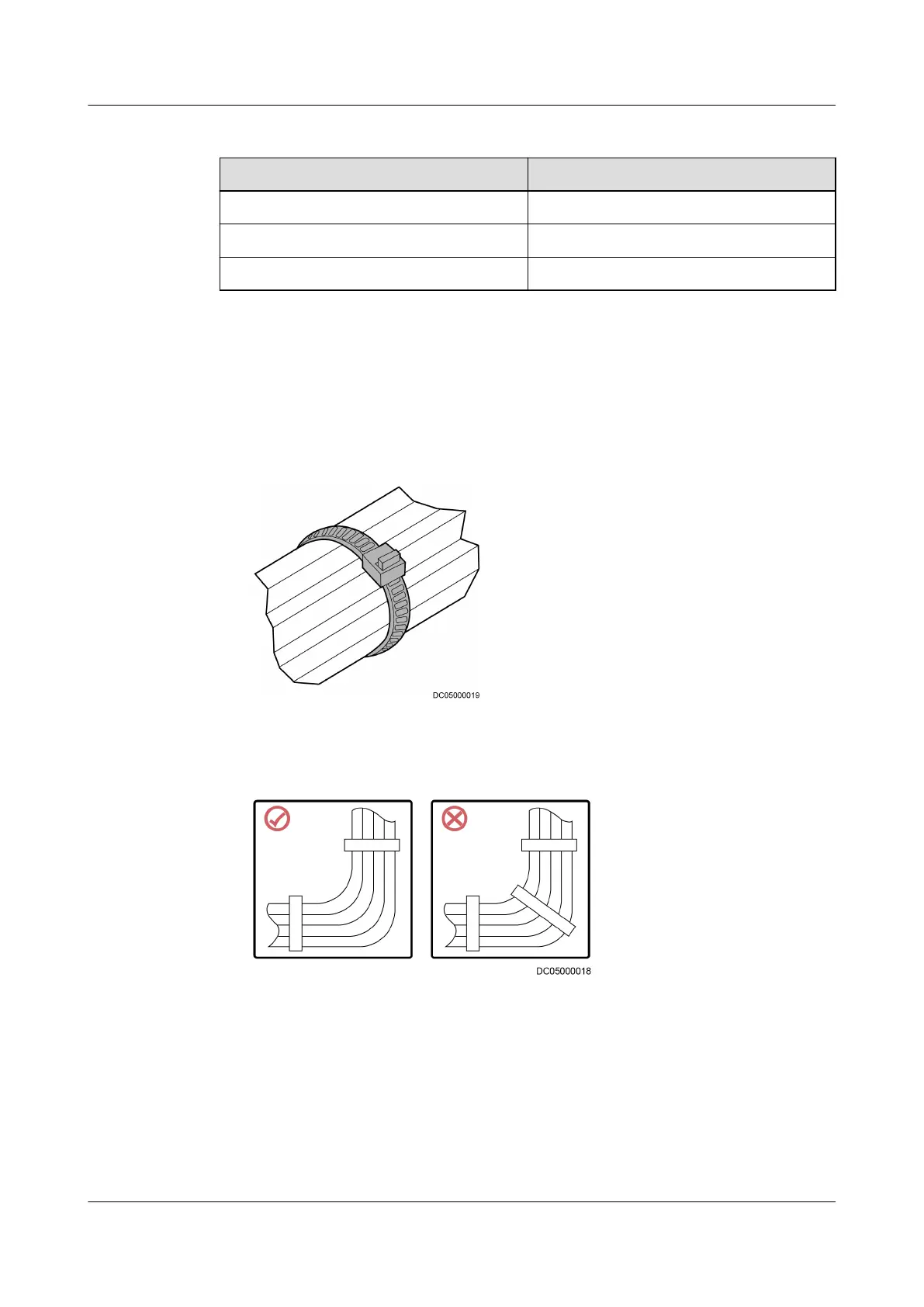

Table 4-12 Cable binding interval
Cable Diameter (mm) Binding Interval (mm)
< 10 150
10–30 200
> 30 300
1. Bind cables with a moderate force and ensure that cables are not misshapen
to prevent compromising the signal quality.
2. After binding cables, cut
o the excess parts of cable ties and trim away any
burrs, as shown in Figure 4-183.
Figure 4-183 Cutting
o the excess part of a cable tie
3. Do not use cable ties at a place where the cables are bent. Otherwise, the
cable cores may break due to strong stress, as shown in Figure 4-184.
Figure 4-184 Binding cables in a bending area
4. Ensure that the cable ties are wrapped and secured in the same direction and
do not generate interference with subsequent operations, as shown in Figure
4-185.
