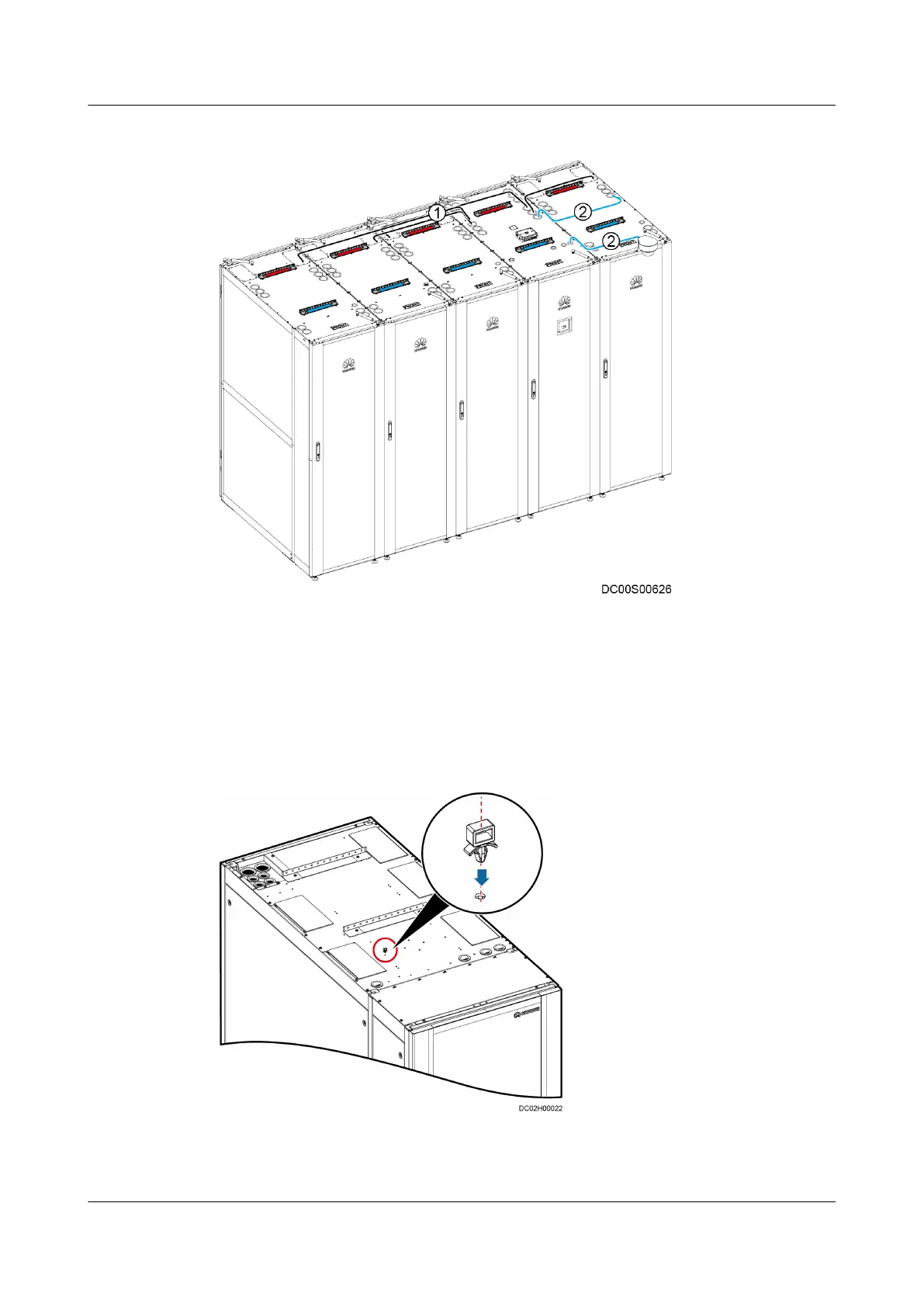

Figure 4-186 Cable routes
(1) Power cable (2) Signal cable
The Converged Cabinet tting bag contains 70 plastic cable ties that can be
installed on holes at the top of the cabinet for binding cables, as shown in Figure
4-187.
Figure 4-187 Installing a plastic cable tie
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 220
