● Connect the ETH converter for the intelligent PDU2000 based on site
requirements.
● Connect cables from the ETH converter to the smart ETH gateway based on
site requirements. The gure is for reference only.

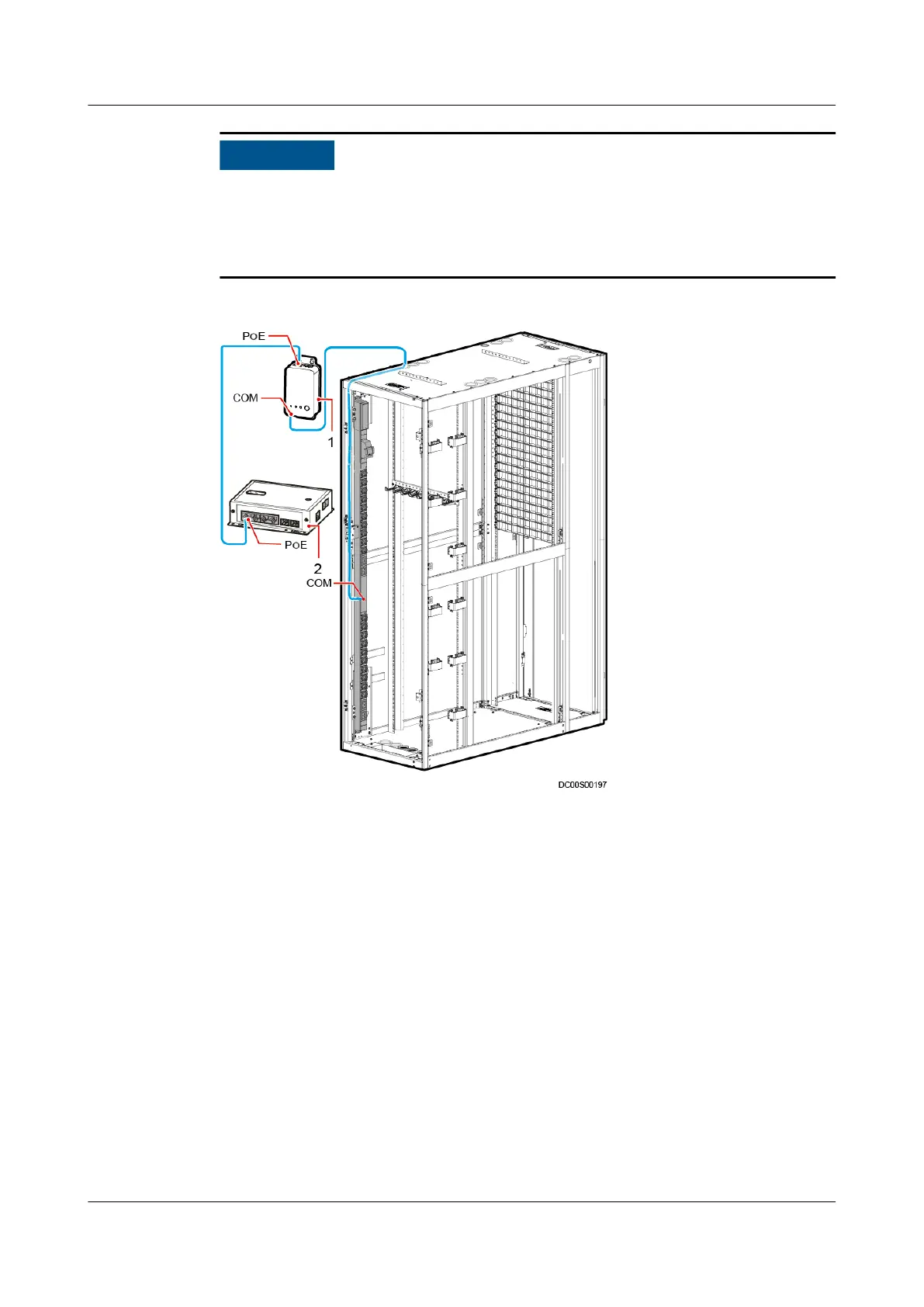

Figure 4-208 Connecting signal cables for the intelligent PDU2000
(1) ETH converter (2) Smart ETH gateway
----End
Example
The signal cable is delivered with the materials. If it is lost, use a standard network
cable.
