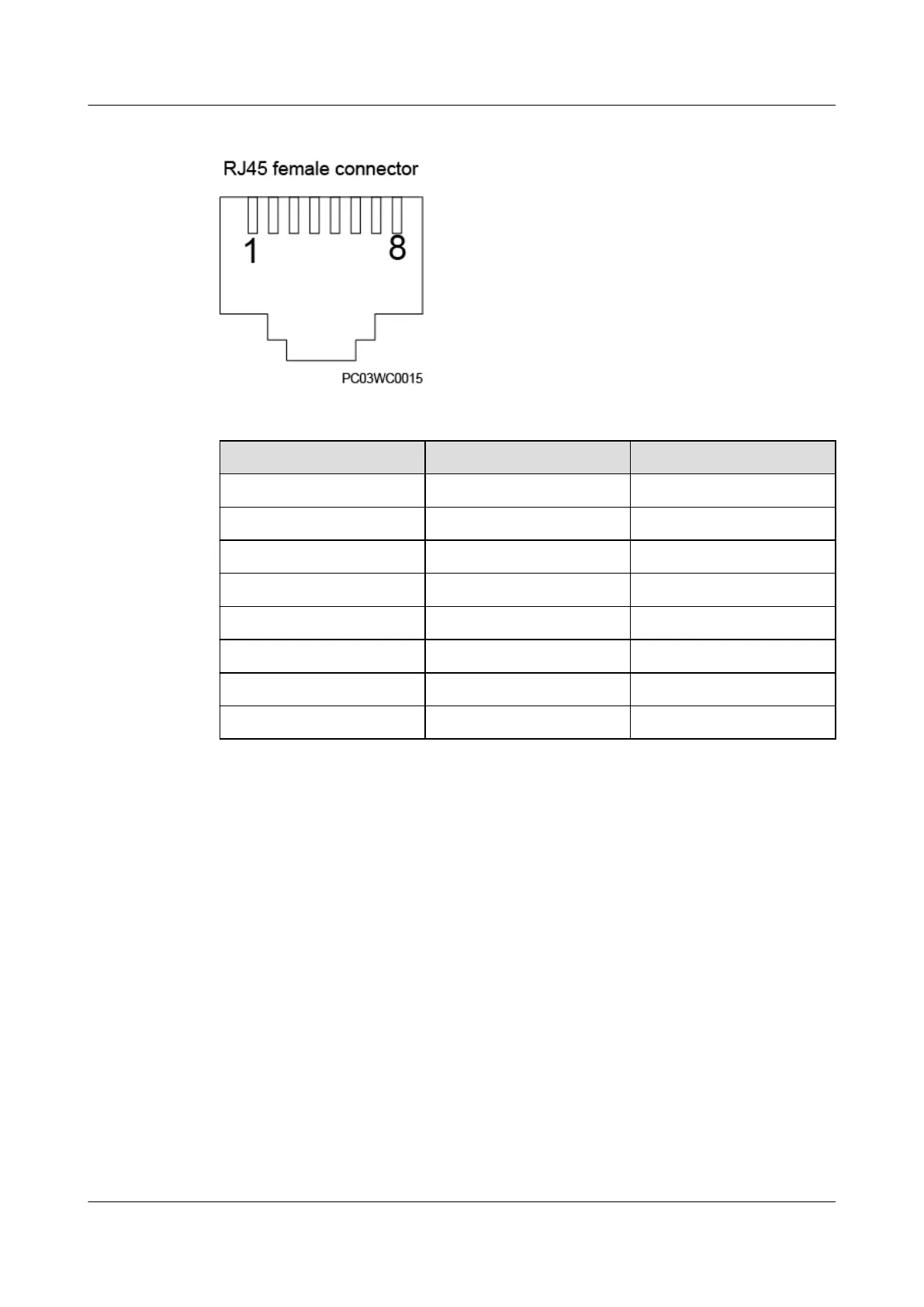

Figure 4-209 Wiring sequence for a standard network cable port
Table 4-13 Function description
No. Color Function Description
1 Orange-and-white RS485-A
2 Orange RS485-B
3 Green-and-white NC
4 Blue RS485-A
5 Blue-and-white RS485-B
6 Green NC
7 Brown-and-white NC
8 Brown NC
FusionModule800 Smart Small Data Center
User Manual 4 Installation Guide
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 236
