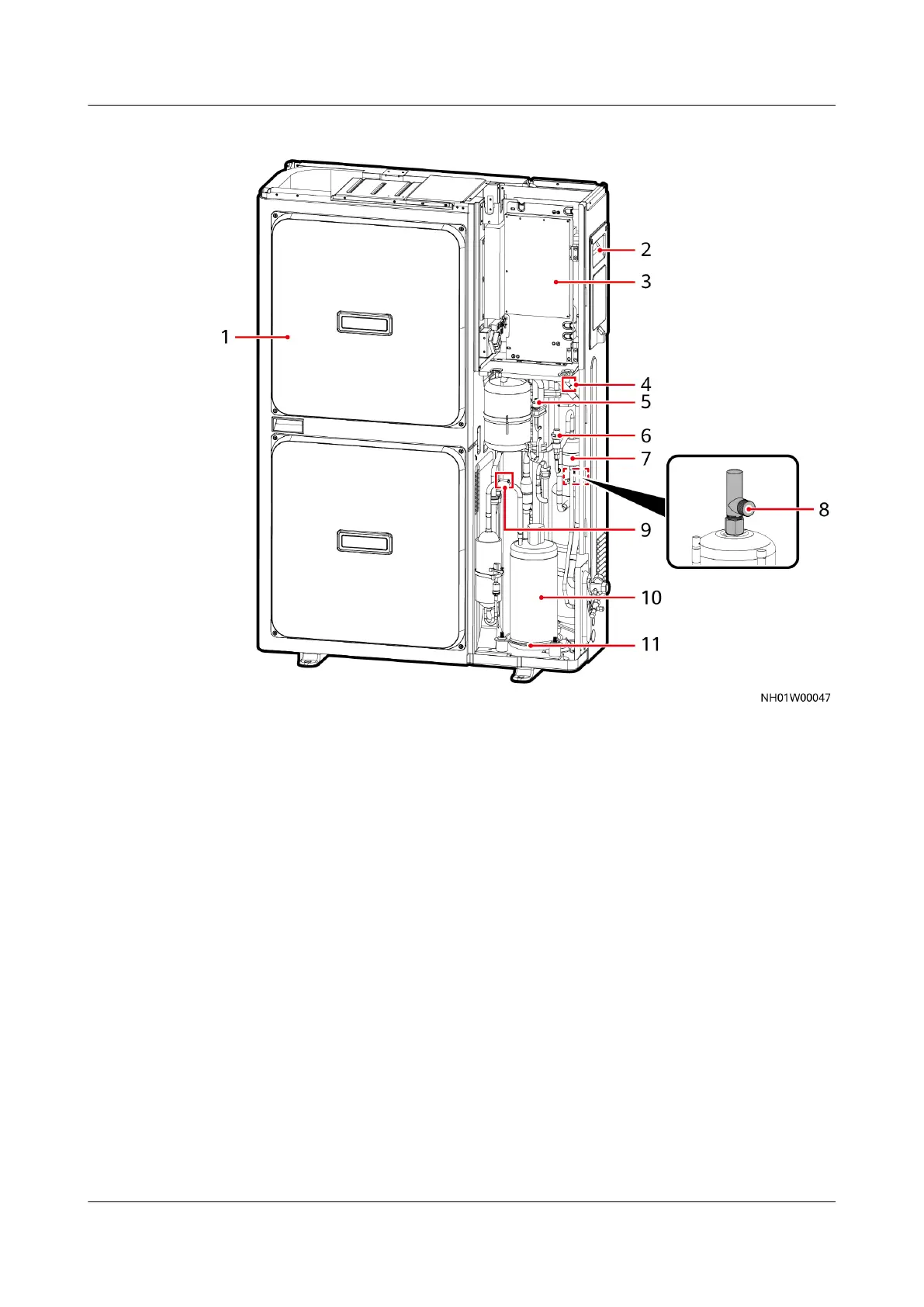

Figure 6-23 NetCol500-A020 components
(1) Outdoor fan (2) Handle (3) Control board
(4) Suction temperature sensor (5) High pressure switch (6) Low pressure switch
(7) High pressure sensor (8) Filter dryer (9) Safety valve
(10) Discharge temperature
sensor
(11) Compressor (12) Oil heating belt
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 432
