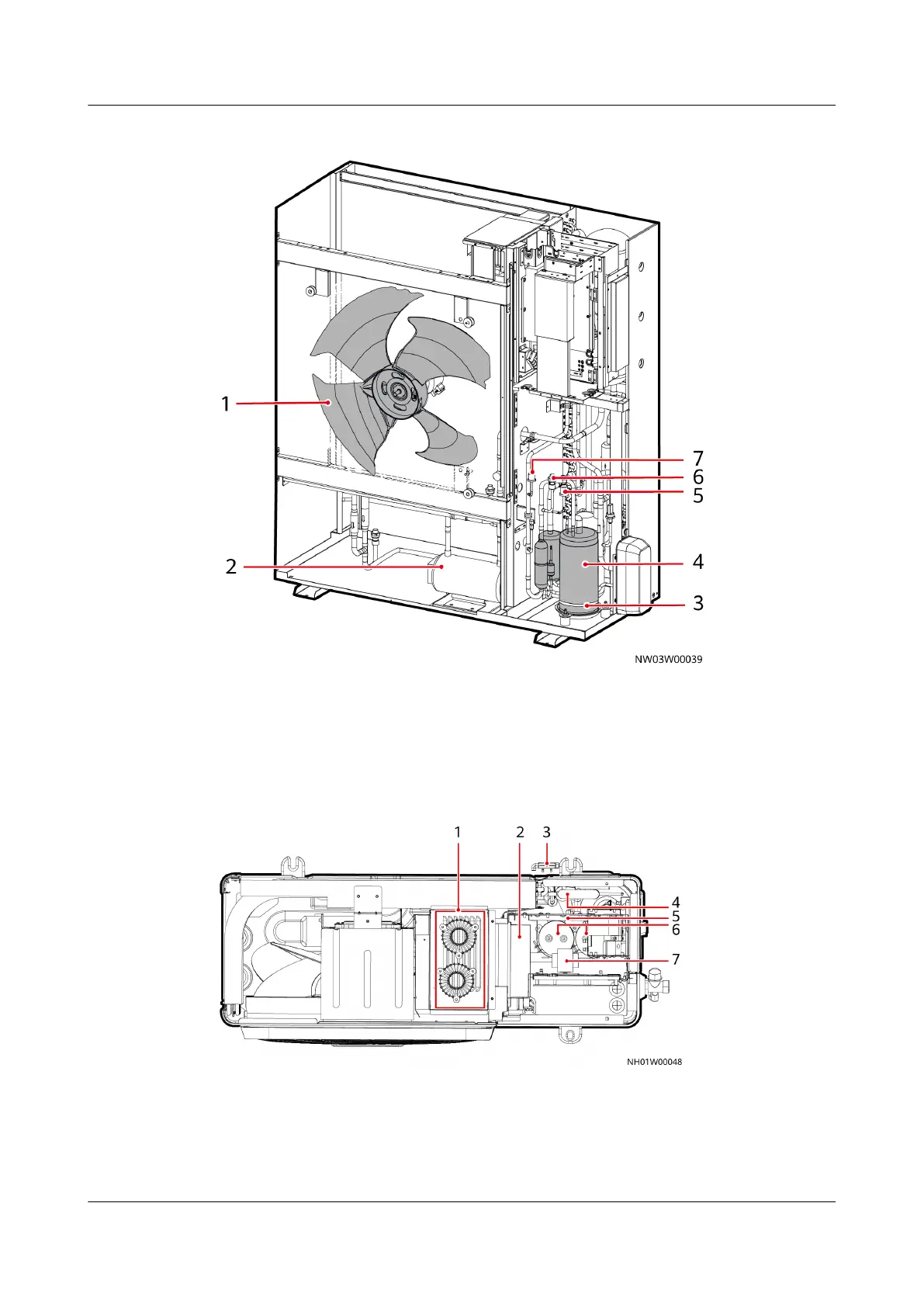

Figure 6-24 NetCol500-A021 components
(1) Outdoor fan blade (2) Freon pump (3) Oil heating belt
(4) Compressor (5) Low pressure switch (6) High pressure sensor
(7) High pressure switch
Figure 6-25 NetCol500-A020 components (top view)
(1) Inductor
(2) Module board (3) Ambient temperature
sensor
(4) Condensate temperature
sensor
(5) Control board (6) Capacitor
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 433
