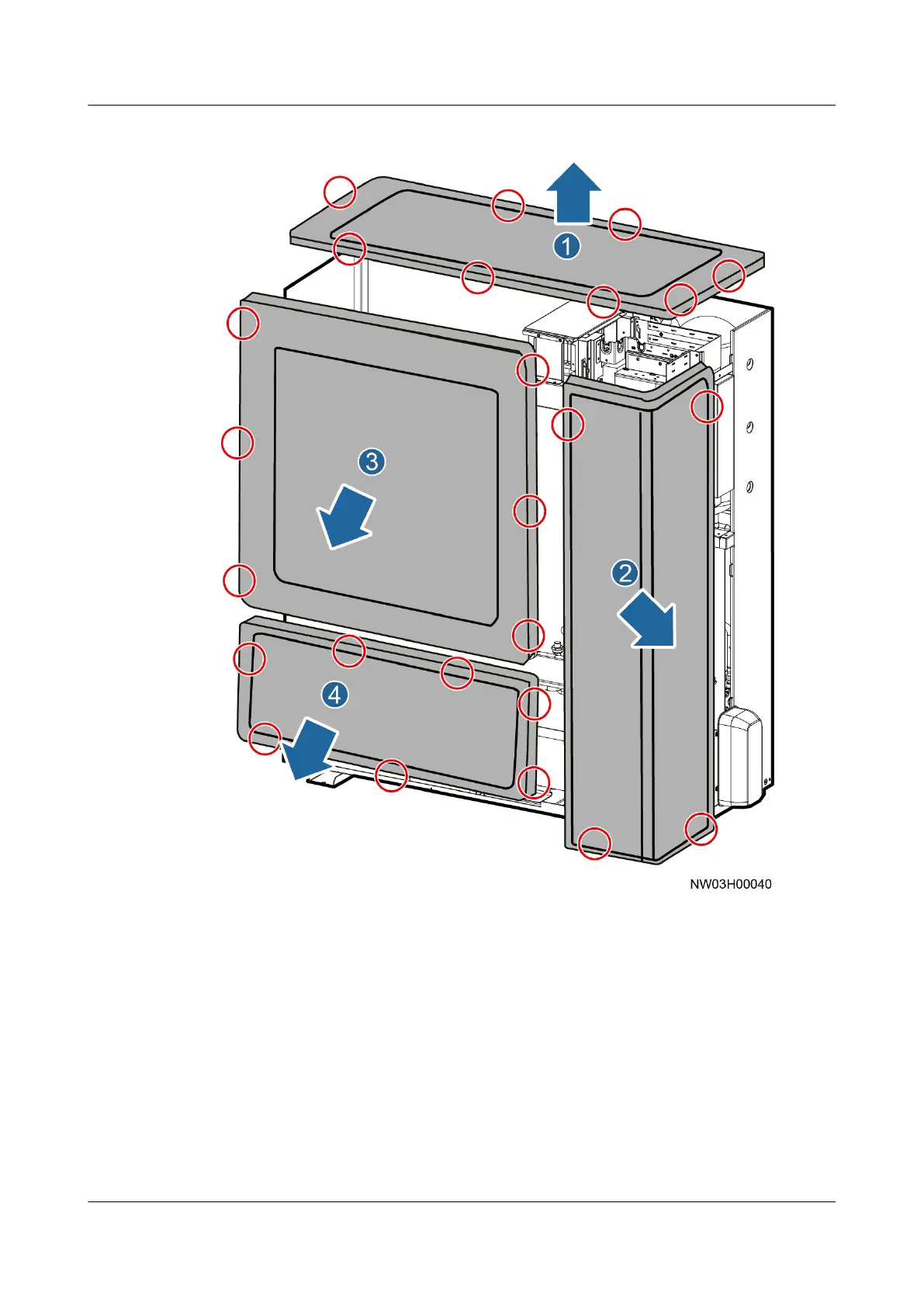

Figure 6-30 Removing panels (for NetCol500-A021)
Step 4 Cut the cable ties on the fan cable using diagonal pliers and take out the outdoor
fan cable from the electric control box.
Step 5 Remove the screw from the fan using a small wrench, and remove the outdoor fan
blades, as shown in Figure 6-31, Figure 6-32, or Figure 6-33.
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 438
