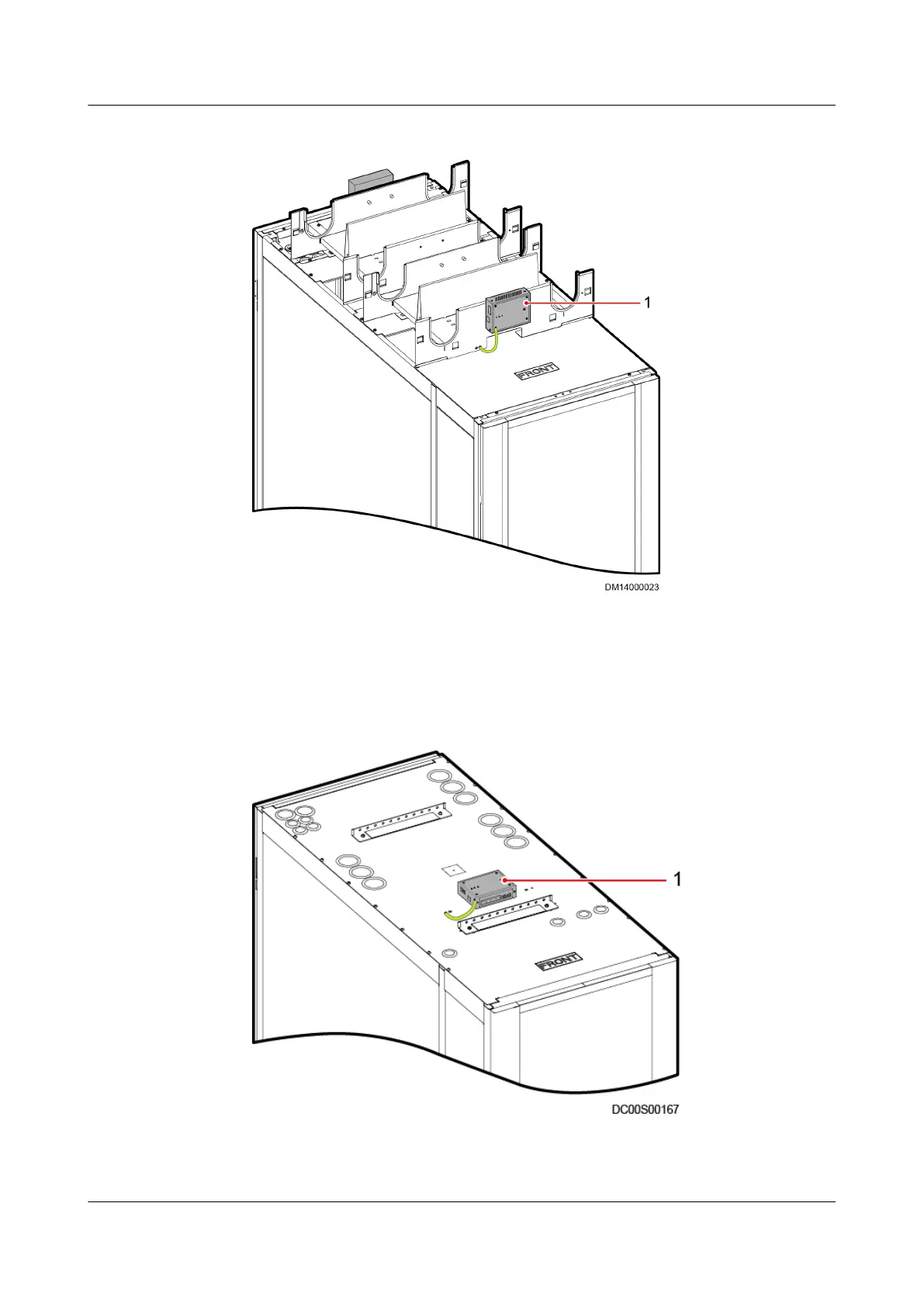

Figure 6-49 Position 1 for installing a smart ETH gateway
(1) Smart ETH gateway
● If M-shaped cable troughs are not deployed for the module, install the smart
ETH gateway on the top of the Converged Cabinet, as shown in Figure 6-50.
Figure 6-50 Position 2 for installing a smart ETH gateway
(1) Smart ETH gateway
