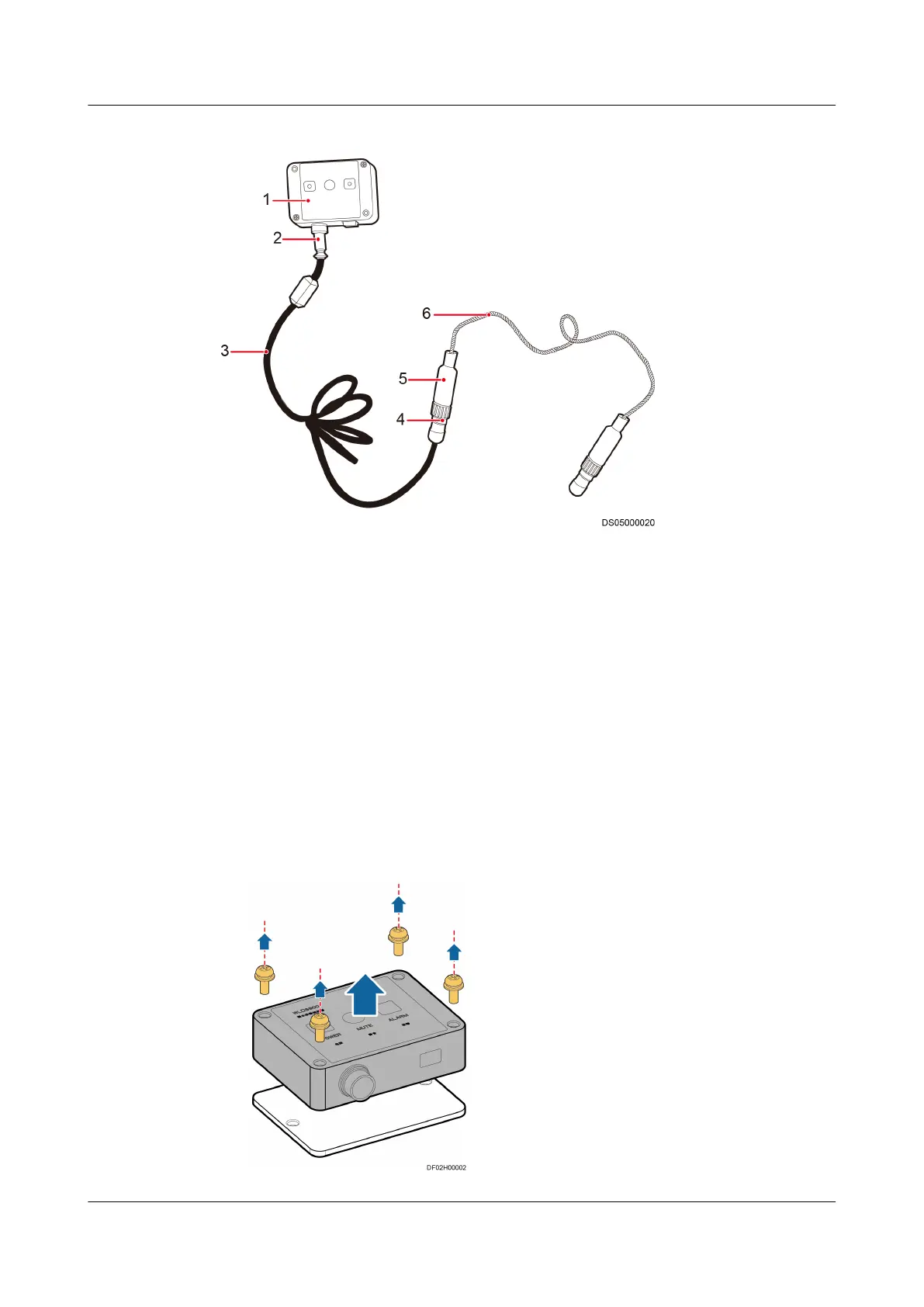

Figure 6-66 Water sensor components
(1) Water detector (2) Conversion cable end A,
connected to the water detector
(3) Conversion cable
(4) Conversion cable end B,
connected to water the
detection cable
(5) Water detection cable end A,
connected to the conversion cable
(6) Water detection cable
Procedure
Step 1 Replace the water detector.
1. Remove the conversion cable at the conversion port for the water detector
and conversion cable.
2. Remove the cover from the water detector.
Figure 6-67 Removing the cover from the water detector
FusionModule800 Smart Small Data Center
User Manual 6 O&M
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 476
