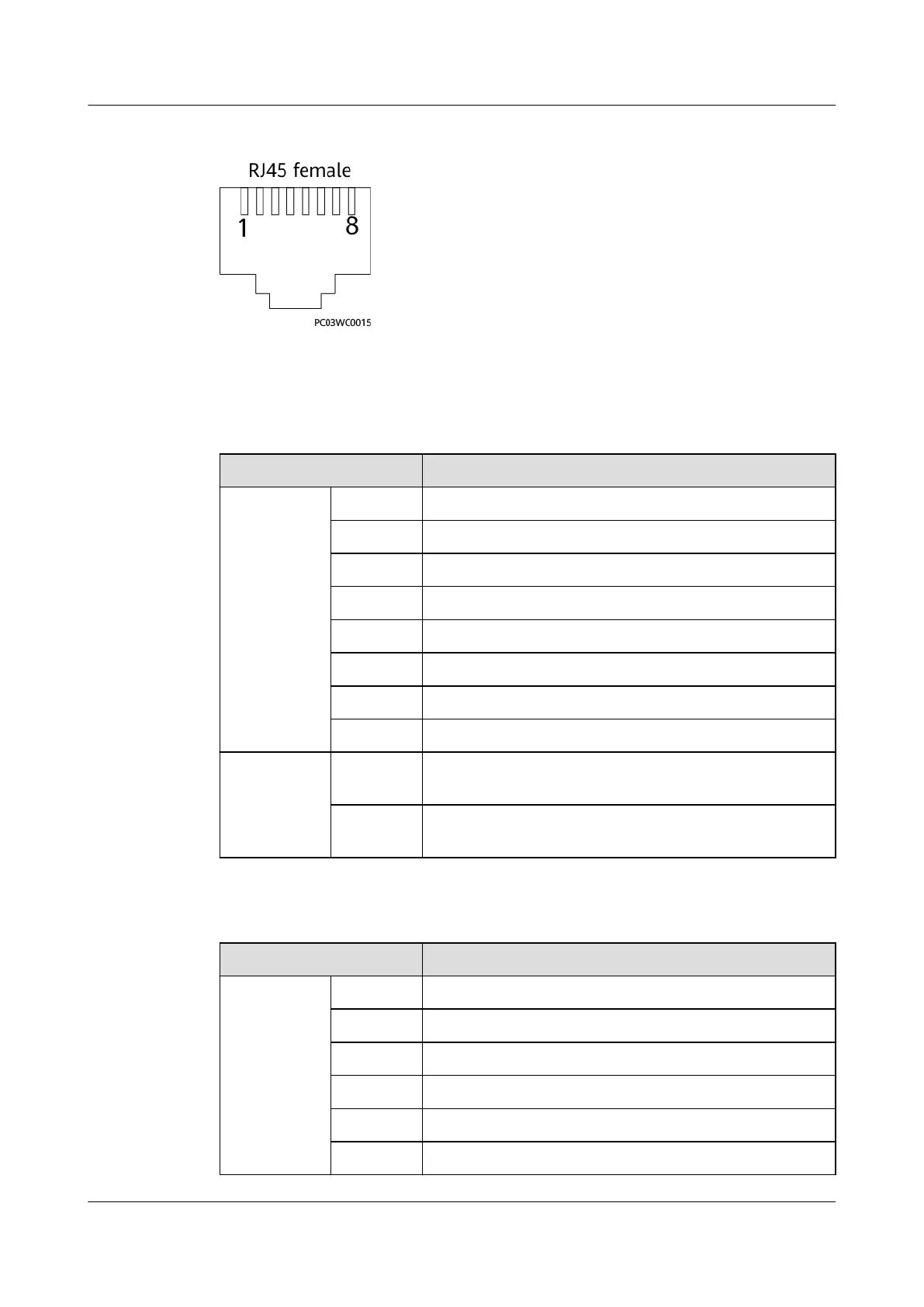

Figure 3-28 RJ45 port pins
There are four GE ports, that is, two WAN ports (WAN1 and WAN2) and two LAN
ports (LAN1/POE and LAN2/POE).
Table 3-21 GE port pin denitions
Item Description
Pin
sequence
Pin1 GE1+
Pin2 GE1-
Pin3 GE2+
Pin4 GE3+
Pin5 GE3-
Pin6 GE2-
Pin7 GE4+
Pin8 GE4-
Indicator Green
indicator
Linked, steady on
Yellow
indicator
ACT data communication, blinking
Table 3-22 COM1/AIDI_4, COM2/AIDI_5 port pin denitions
Item
Description
Pin
sequence
Pin1 RS485+
Pin2 RS485-
Pin3 12V DC_OUT
Pin4 RS485+
Pin5 RS485-
Pin6 DI-
