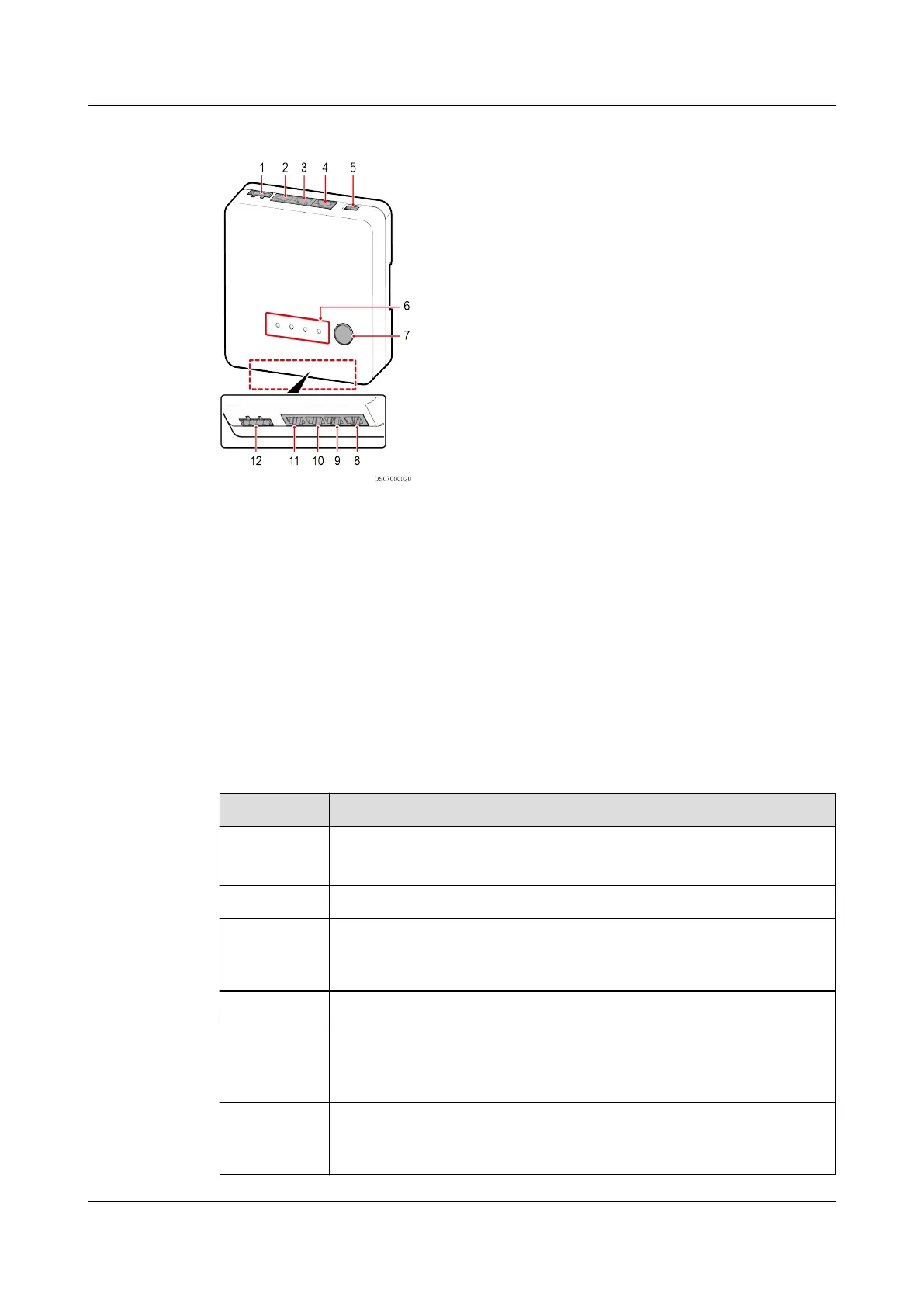

Figure 3-43 Access actuator
(1) 48 V power port (2) POE port (3) RS485 port COM2
(4) RS485 port COM1 (5) Address DIP switch (6) Status indicator
(7) BLINK button (8) WG_2 Wiegand interface (9) WG_1 Wiegand interface
(10) AI/DI_2 dry contact
(Reserved port for linkage
control or third-party re
extinguishing system dry
contacts)
(11) AI/DI_1 dry contact
(Reserved port for exit
button)
(12) LOCK/GND/GATE/COM door
status or magnetic lock port
Specications
Table 3-49 Access actuator technical specications
Item
Specications
Power input ● DC input: Terminal, with input voltage of 36–60 V DC
● POE input: One POE port that complies with IEEE802.3at.
POE port FE communication, 10/100M communications rate
Wireless
communicat
ion
One wireless communication port that complies with
IEEE802.15.4, mutual backup with FE communication
AI/DI port Two AI/DI ports, can connect to the re alarm and exit button
DO/DI port ● One 12 V DC power output that controls magnetic locks,
terminal
● One DI input port for connecting to the door status switch
RS485 serial
port
expansion
Two RS485 ports (one route) with the default communications
rate of 9600 bit/s, physical port cascading supported (reserved
function)
FusionModule800 Smart Small Data Center
User Manual 3 System Architecture
Issue 01 (2021-02-05) Copyright © Huawei Technologies Co., Ltd. 74
