N2000H V3 Appliance
User Guide
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

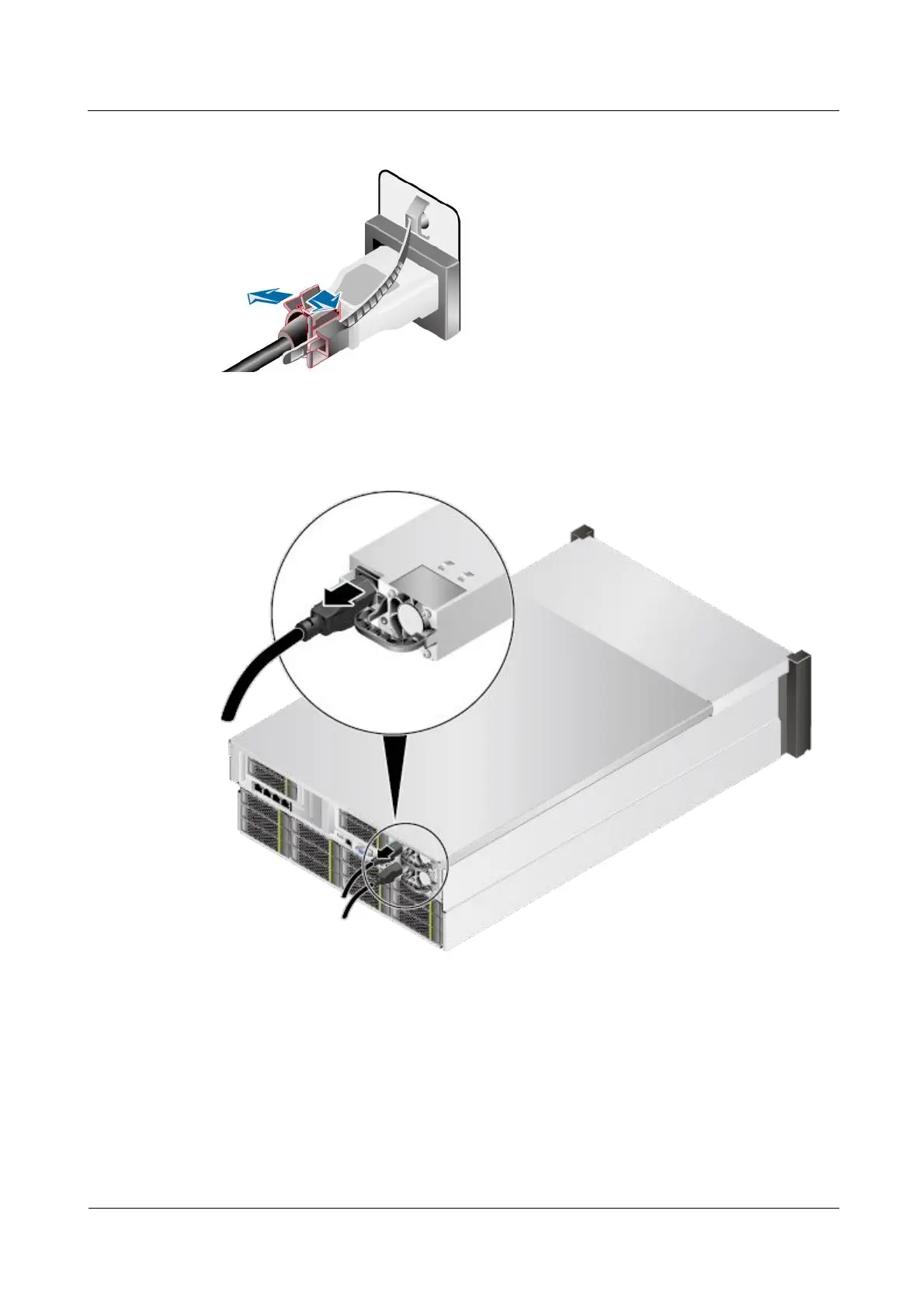

Figure 7-5 Opening a cable tie
Step 3 Remove the power cable from the PSU to be replaced. See Figure 5-6.
Figure 7-6 Removing a power cable
Step 4 Press the spring on the PSU in the arrow direction, and pull the PSU out of the slot while
holding the handle. See steps (1) and (2) in Figure 5-7.
