You have removed the fan supports from the N2000H V3. For details, see 5.30
Removing the Mainboard.
Data
You have determined the position on the N2000H V3 for installing the front hard disk
backplane.
You have obtained the rack number and chassis number of the N2000H V3.
You have located the N2000H V3 based on the preceding information, and labeled its
panel to prevent misoperations.
Tools
ESD gloves
M3 Phillips screwdriver
Packaging materials, for example, an ESD bag
Procedure
Step 1 Take the spare front hard disk backplane out of the ESD bag.
Step 2 Hook the hard disk backplane, and push it in the arrow direction until the latch is locked and it
does not move. See Figure 5-76.

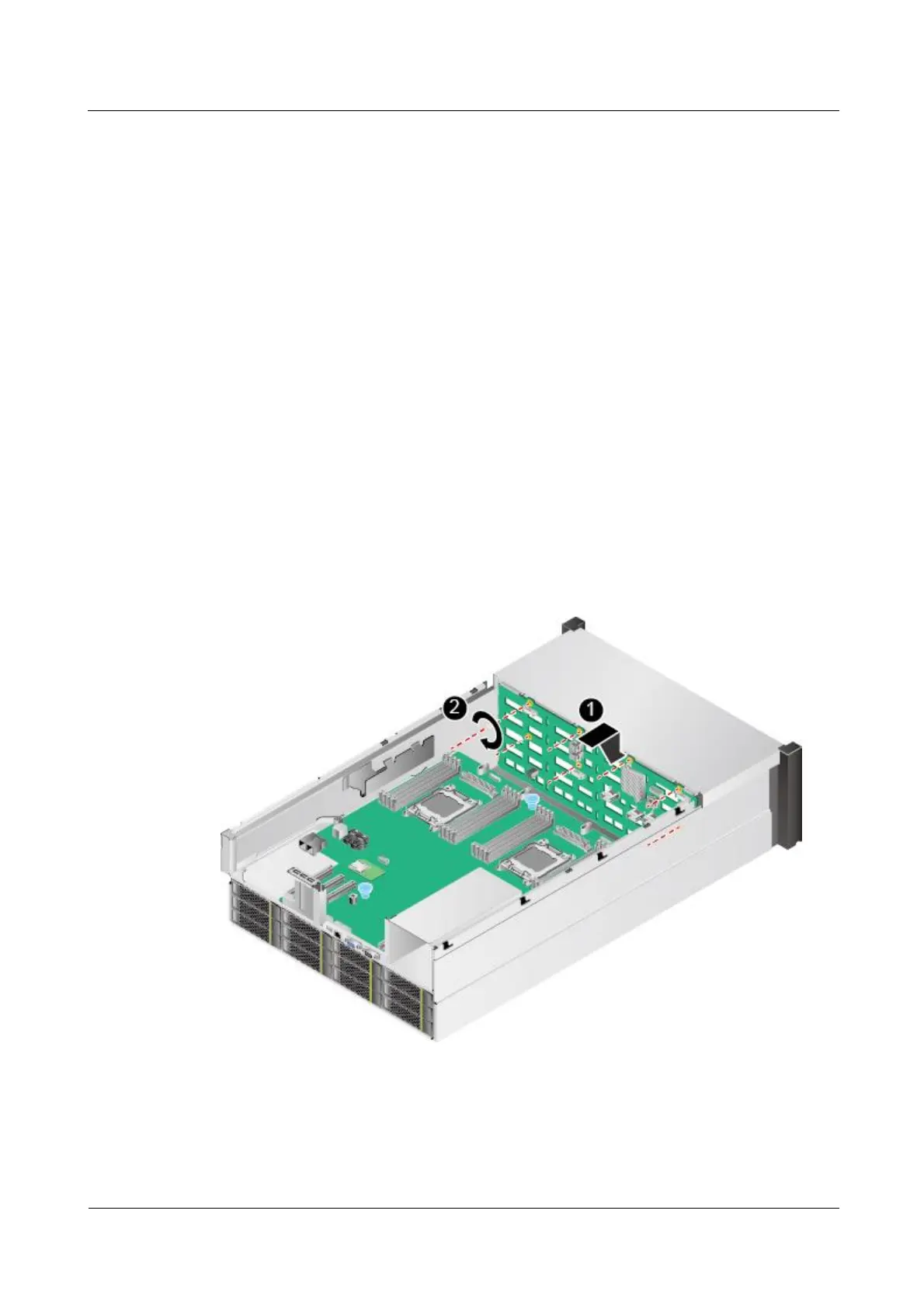

Figure 7-76 Installing a hard disk backplane
Step 3 Screw the hard disk backplane. See step (2) in Figure 5-76.
Step 4 Connect the cable of the front hard disk to the Appliance. For details, see 1.7 Internal Cabling.
Step 5 Install the front hard disk.
