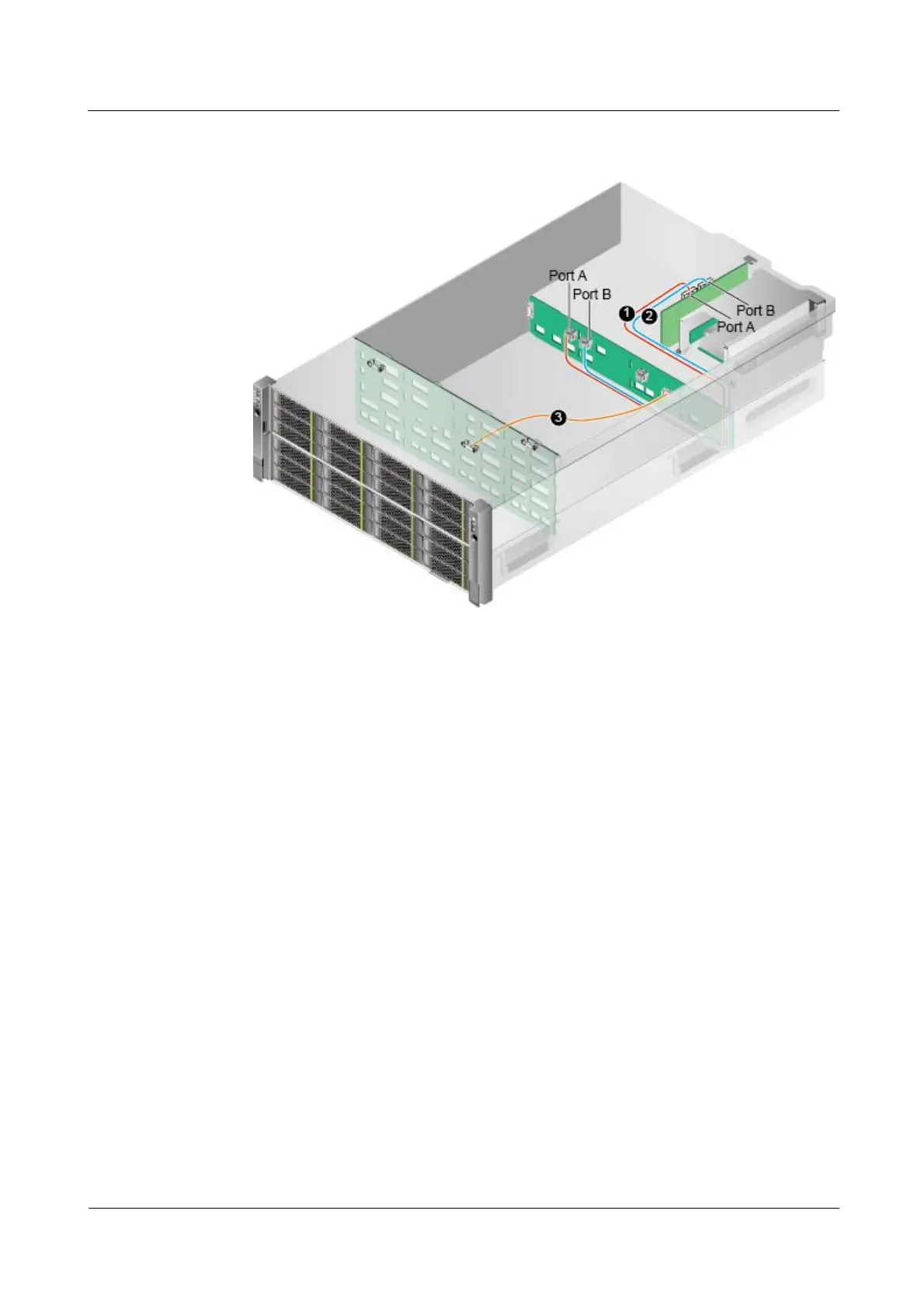

Figure 1-9 Signal cables to the rear hard disk backplane for 12 disks (dual RAID controller
cards)
1
SAS cable (Port A-Port A) for connecting the rear hard disk backplane for 12 disks
to the standard RAID controller card in a PCIe slot
2
SAS cable (Port B-Port B) for connecting the rear hard disk backplane for 12 disks
to the standard RAID controller card in a PCIe slot
3
Signal cable for connecting the rear hard disk backplane (J1) for 12 disks to the
front hard disk backplane (J36)
Storage Power Cabling

Power cables to the front hard disk backplane and the rear hard disk backplane for two
disks
