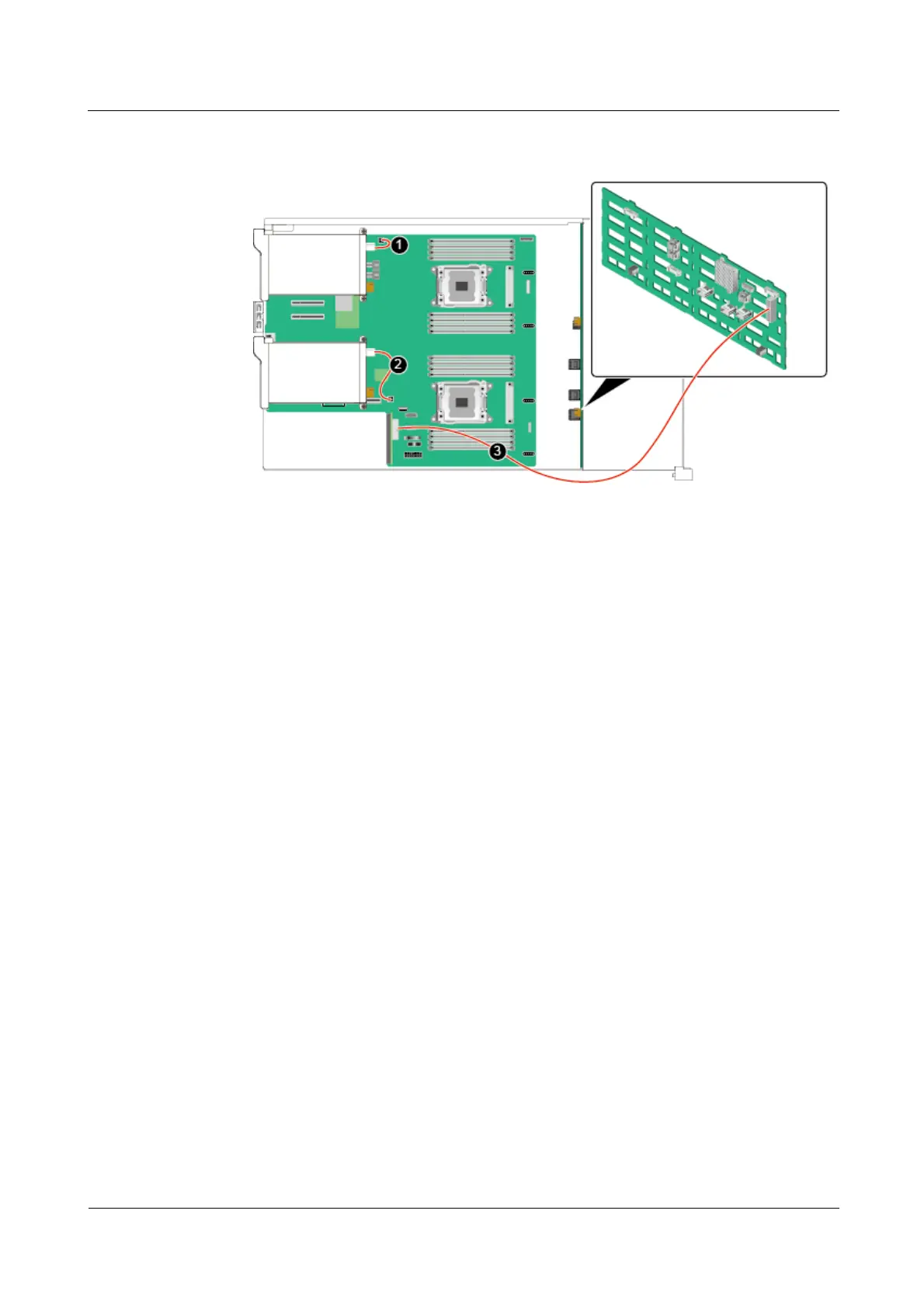

Figure 1-10 Power cables to the front hard disk backplane and the rear hard disk backplane
for two disks
1
Power cable for connecting the rear hard disk backplane (J1 BP PWR) for two
disks to the mainboard (J28 PWR CONN2)
2
Power cable for connecting the rear hard disk backplane (J1 BP PWR) for two
disks to the mainboard (J29 PWR CONN3)
3
Power cable for connecting the front hard disk backplane (J61 POWER) to the
PSU backplane (J4)

