N2000H V3 Appliance
User Guide
4 Configuring the N2000H V3
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

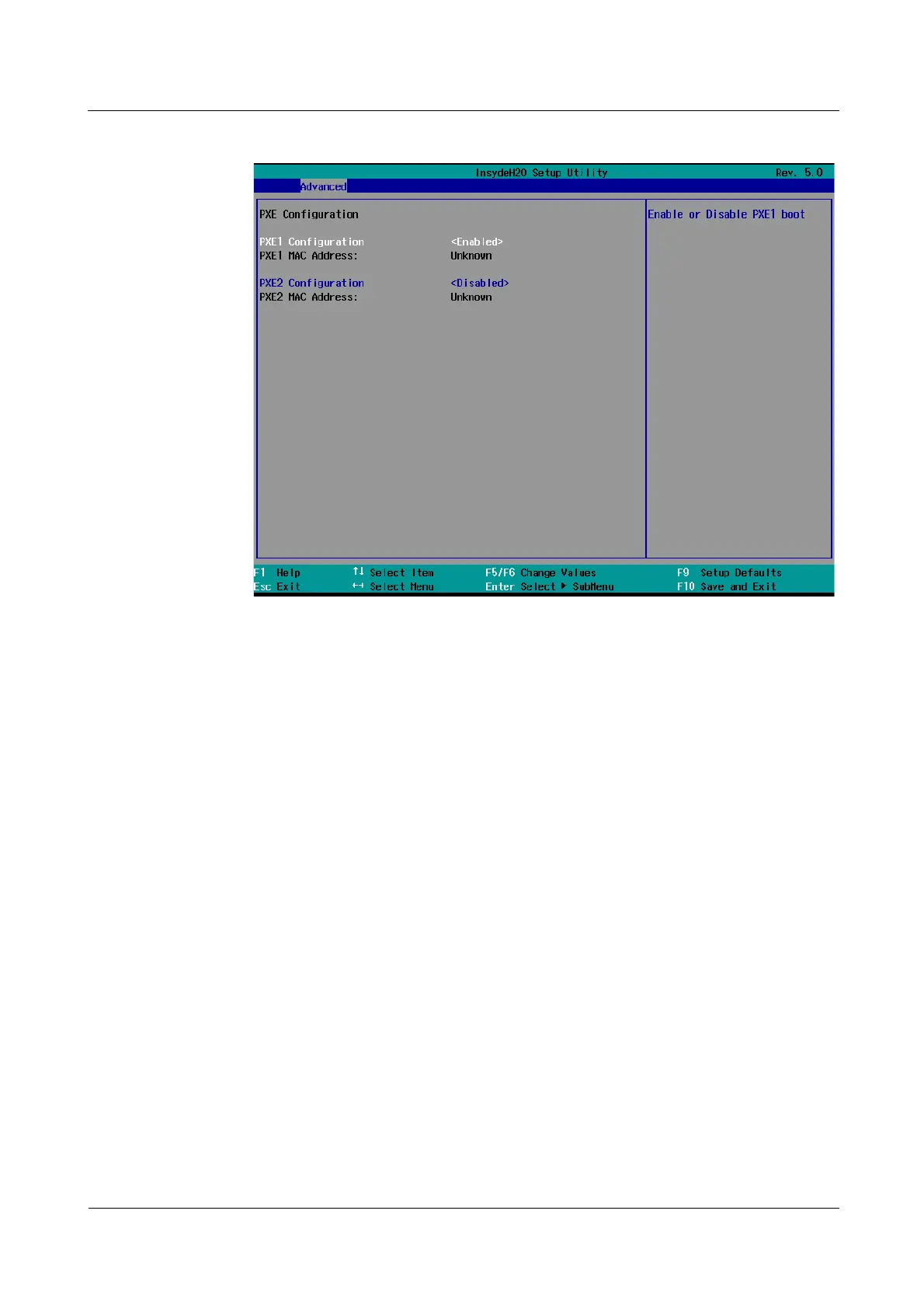

Figure 4-15 PXE Configuration
11. Select the network port to be configured, and press Enter.
12. Choose Enabled from the shortcut menu and press Enter to enable the PXE function for
the NIC.
Set the BIOS password.
13. Select the Security tab.
The Security screen is displayed, as shown in Figure 4-16.
To Next Page
