N2000H V3 Appliance
User Guide
4 Configuring the N2000H V3
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

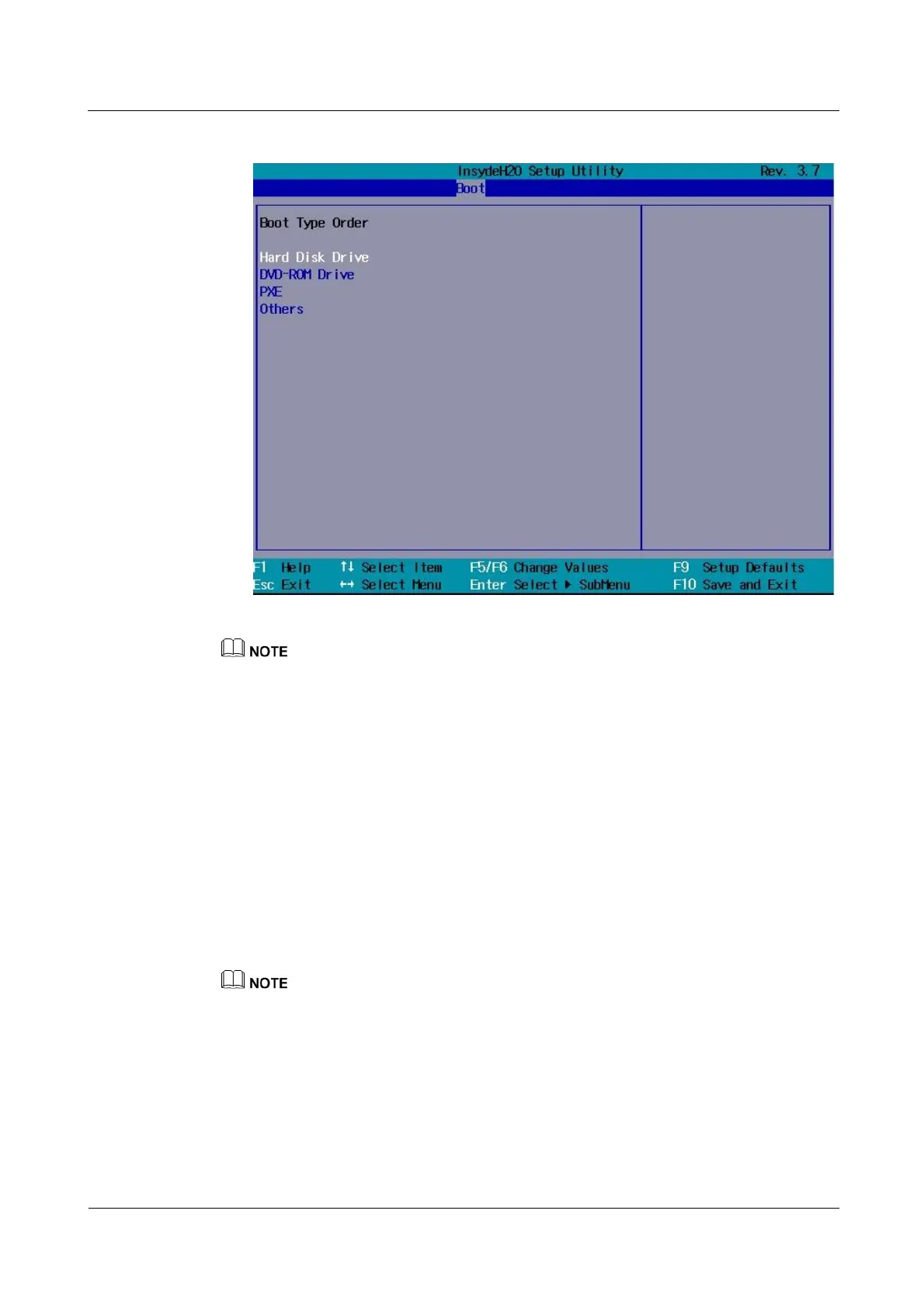

Figure 4-14 Boot Type Order
When Hard Disk Drive is selected as the boot option for the N2000H V3 with two RAID controller
cards, to avoid a failure to display the boot option for installing the OS due to insufficient BIOS space,
you are advised to disable the other RAID boot options. For details, see 7.5 Disabling RAID Boot
Options.
Set the boot option to the network.
9. Select boot options that are to be configured, and press + or - to change the boot
sequence. Set the first boot option to PXE.
The option at the top of the boot option list is the first boot option, and the one at the
bottom is the last boot option.
− To move a boot option up, press +.
− To move a boot option down, press -.
Configure the PXE.
10. Choose Advanced > PXE Configuration and press Enter.
The PXE Configuration screen is displayed, as shown in Figure 4-15.
This screen displays only network ports 1 and 2 on a LAN on motherboard (LOM) no matter how many
network ports the LOM has. The default value is Enabled for PXE1 and Disabled for PXE2.
