Curve between the Cooling Capacity and Altitude

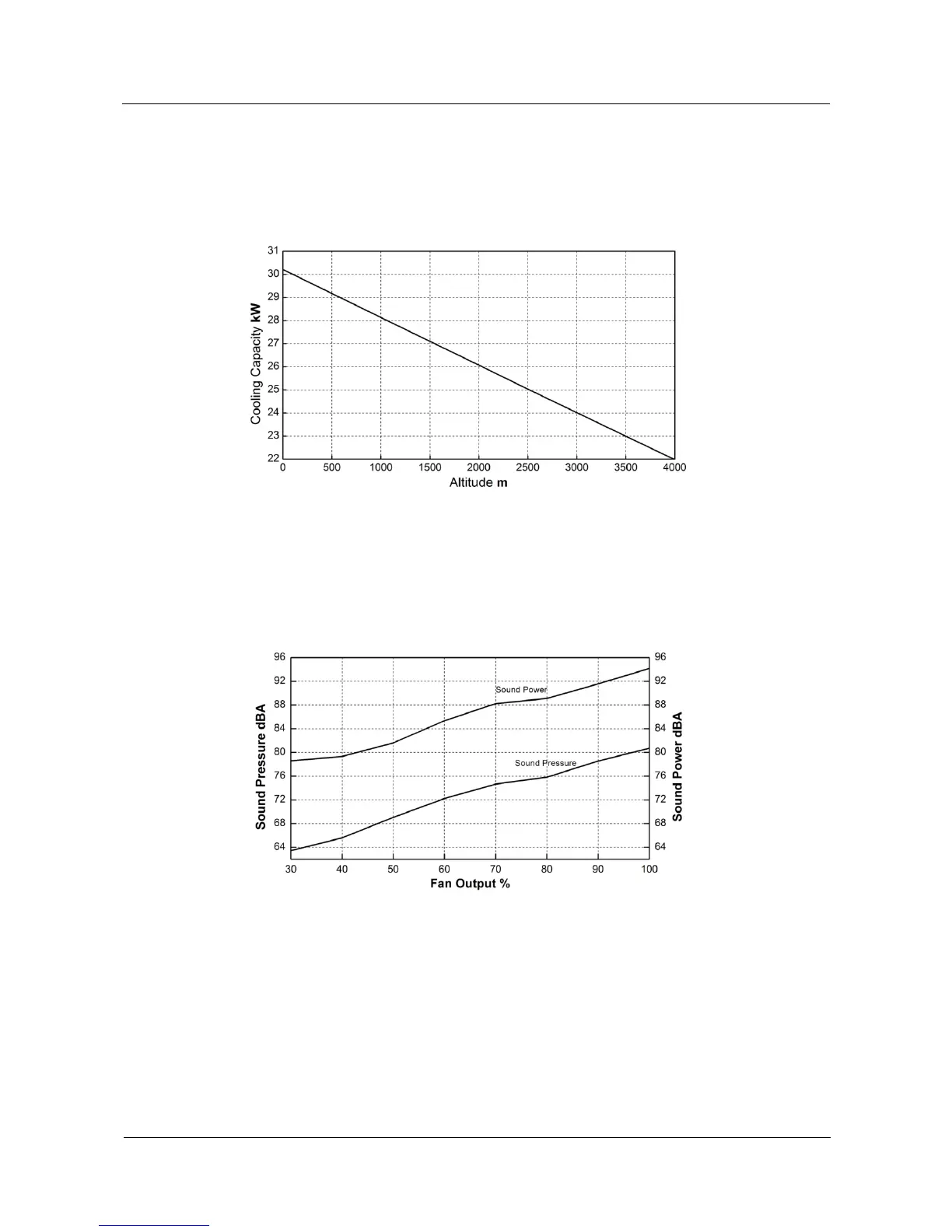

Figure 2-11 Curve between the cooling capacity and altitude
The cooling capacity is obtained by multiplying the altitude by the cooling capacity.
Fan Noise Curve
Figure 2-12 Curve between the acoustic pressure level, acoustic power, and fan output
Test environment: The ambient temperature is 23 °C (tolerance ±2 °C) which is measured 1
meter away from the cabinet surface.
