Front Panel

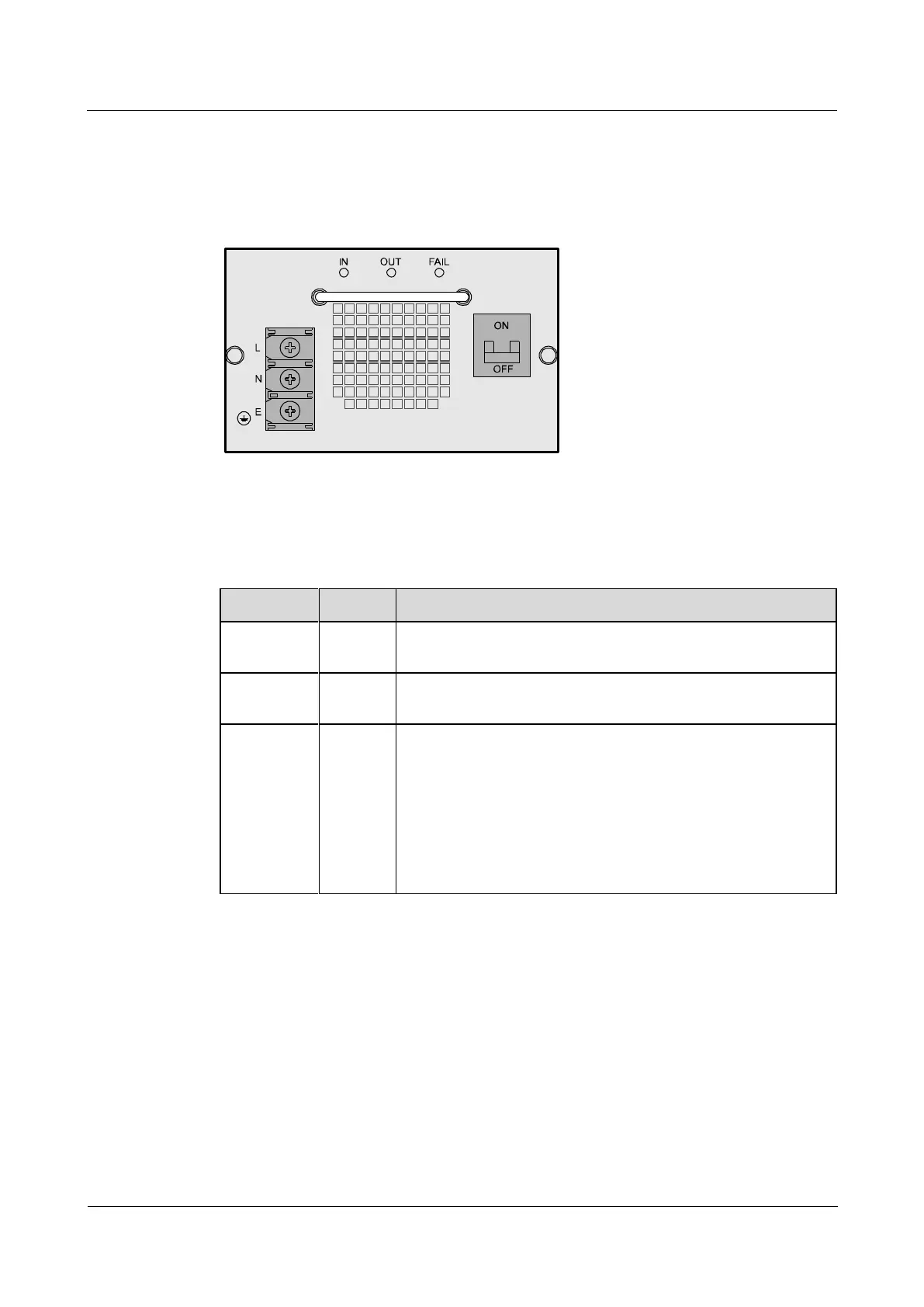

Figure 5-7 shows the front panel of the AC power supply module on the NE40E-8.
Figure 5-7 Front panel of the AC power supply module
The indicators of NE40E-8's power supply module are visible on the plastic panel through
light pipes.Table 5-5 describes the indicators.
Table 5-5 Description of the indicators of the AC power supply module
Indicator
Color
Description
PWR IN
Green
Indicates normal power input. If the indicator is on, there is an
input in the primary line.
PWR OUT
Green
Indicates normal power output. If the indicator is on, the outputs
of the primary and secondary lines are normal.
ALM
Red
Indicates power failure. If the indicator is on, the power module
has one of the following faults:

The power input is abnormal.

The power output is abnormal (such as over-voltage or short
circuit).

The fan of the power module fails.

The power module is overheated.
Figure 5-8 shows the plastic panel of the power module of the NE40E-8.
