Panel
Figure 6-8 shows the panel appearance of the SP160. Figure 6-8 describes the indicators on
the panel.

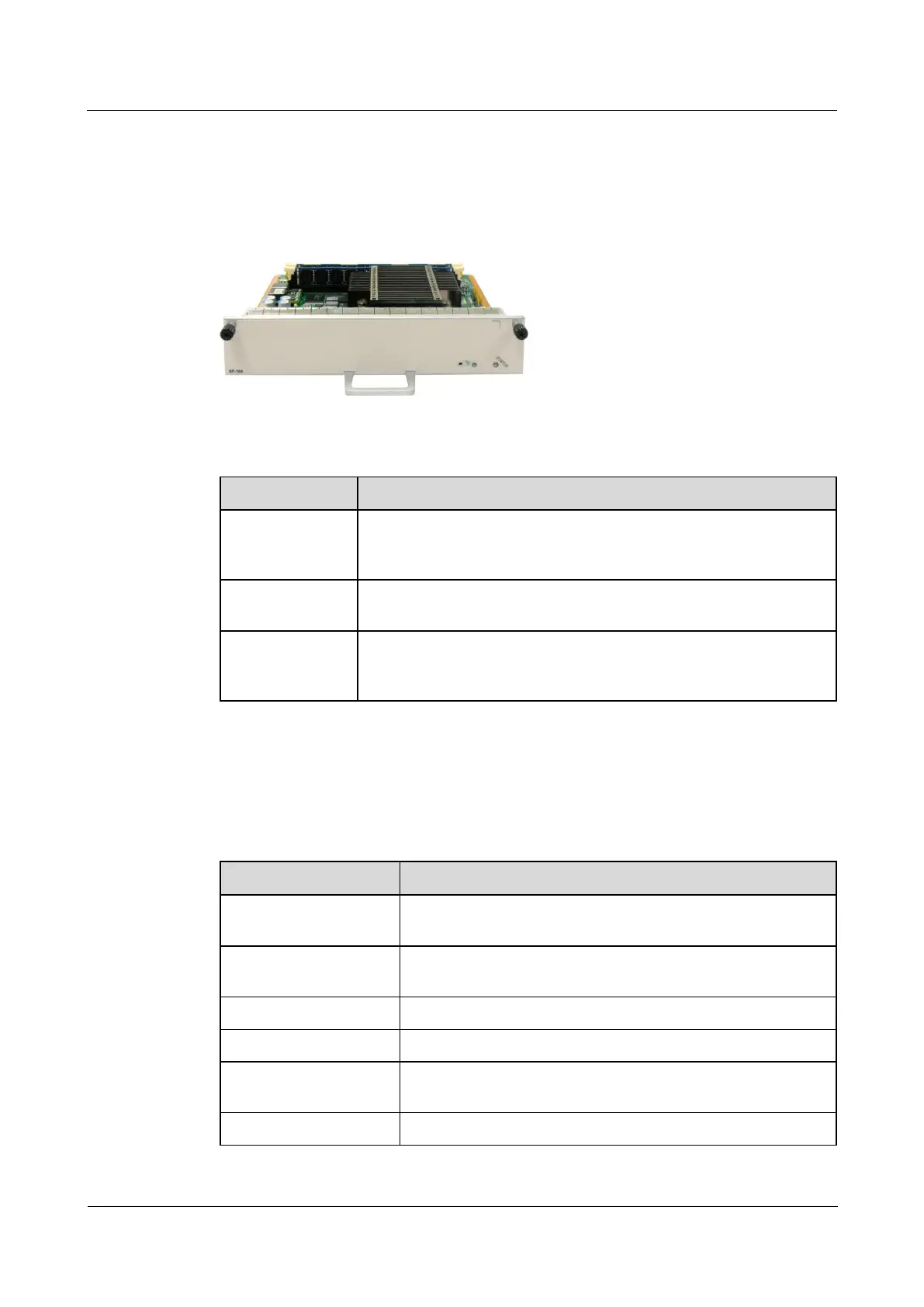

Figure 6-8 Panel appearance of the SP160
Table 6-17 Indicators on the panel of the SP160
Indicator
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about five
seconds till the OFL indicator is on about three seconds.
OFL indicator
(red)
If the indicator is on about three seconds, you can remove the board.
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
Technical Specifications
Table 6-18 lists the technical specifications of the SP160.
Table 6-18 Technical specifications of the SP160
Item
Specifications
Silkscreen of the board
name
SP160
Power consumption
(typical value)
81 W
Heat dissipation
262.80 BTU/hour
Board weight
About 1.0 kg (2.21 lb)
Dimensions (width x
depth x height)
178 mm x 180 mm x 35 mm (7.01 in. x 7.09 in. x 1.38 in.)
Earliest software version
V600R006C00
