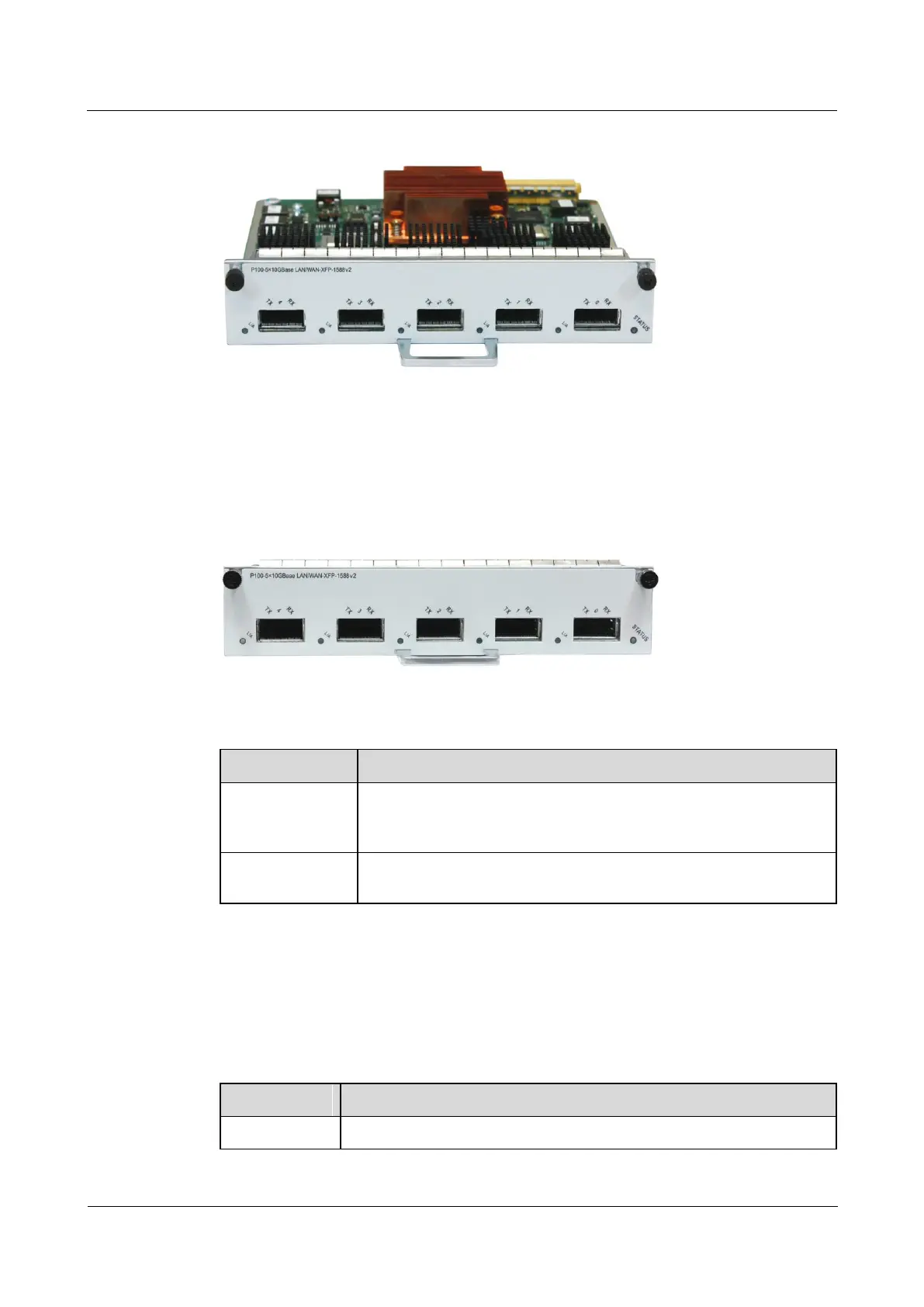

Figure 6-13 Appearance of the 5-Port 10GBase LAN/WAN-XFP Flexible Card A
Panel
Figure 6-14shows the panel appearance of the 5-Port 10GBase LAN/WAN-XFP Flexible Card
A. Table 6-26 describes the indicators on the panel.
Figure 6-14 Panel appearance of the 5-Port 10GBase LAN/WAN-XFP Flexible Card A
Table 6-26 Indicators on the panel of the 5-Port 10GBase LAN/WAN-XFP Flexible Card A
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-27 lists the interface attributes of the 5-Port 10GBase LAN/WAN-XFP Flexible Card
A.
Table 6-27 Interface attributes of the 5-Port 10GBase LAN/WAN-XFP Flexible Card A
