Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
196

Only CSFP optical modules can be installed on this type of subcard. To communicate with this
subcard, an interface on the peer end must have BIDI or CSFP optical modules with the matching
transmit and receive wavelengths installed.

If optic fiber on a sub-card is hard to be inserted and removed because the sub-card is fully
configured, use a fiber interface clamp. If the indicator switching button is sheltered by cables, user
a tool such as a fiber interface clamp to help push the button.

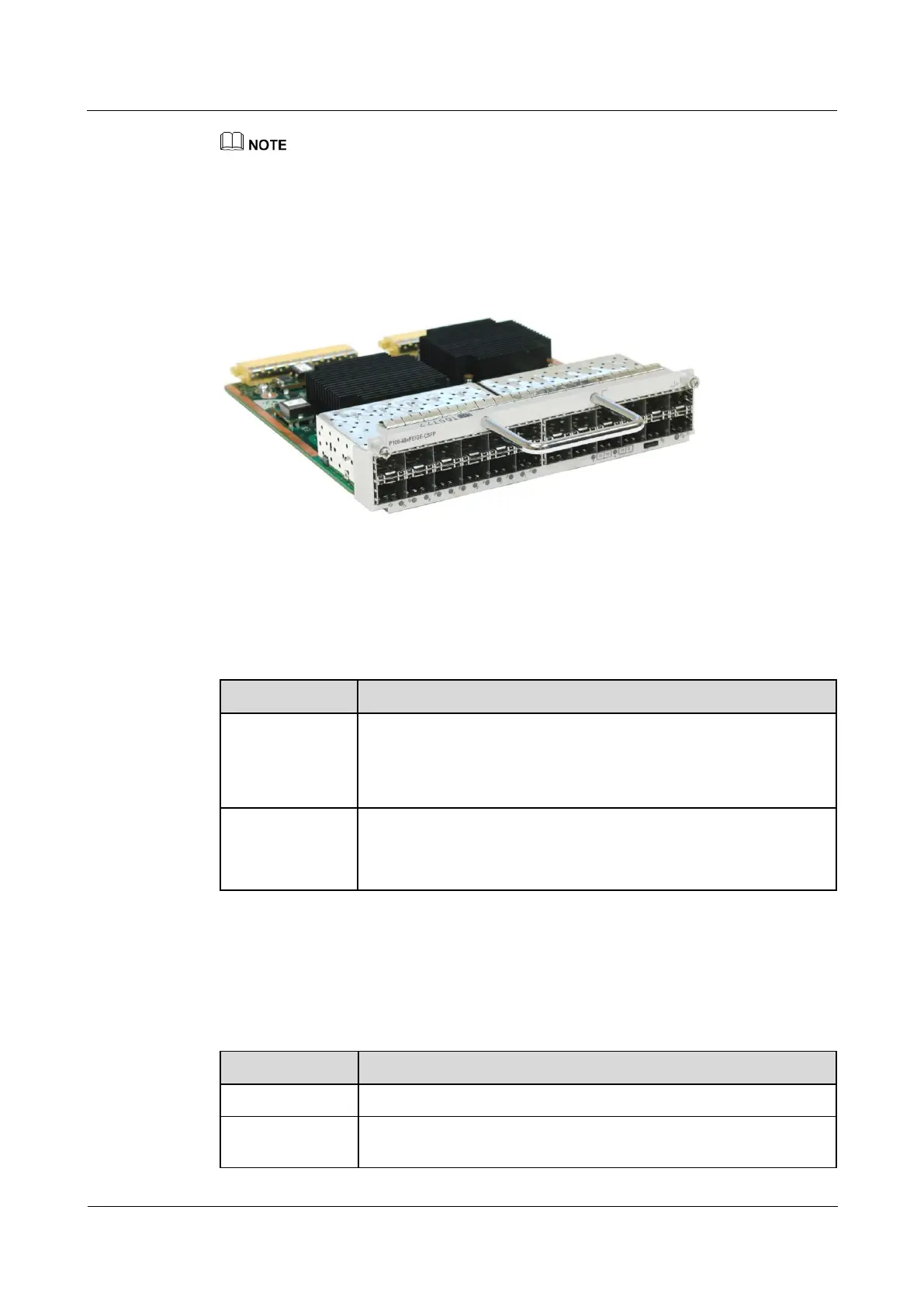

Figure 6-16 Appearance of the 48-Port 100/1000Base-CSFP Flexible Card
Panel
Table 6-38 lists the indicators on the panel.
Table 6-38 Indicators on the panel of the 48-Port 100/1000Base-CSFP Flexible Card
Component
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the FPIC is in the alarm
state.
LINK/ACT
indicator (green)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
Interface Attributes
Table 6-39 lists the interface attributes of the 48-Port 100/1000Base-CSFP Flexible Card.
Table 6-39 Interface attributes of the 48-Port 100/1000Base-CSFP Flexible Card
Attributes
Description
Connector type
LC/PC
Optical interface
attributes
Compliant with the selected CSFP optical module.
