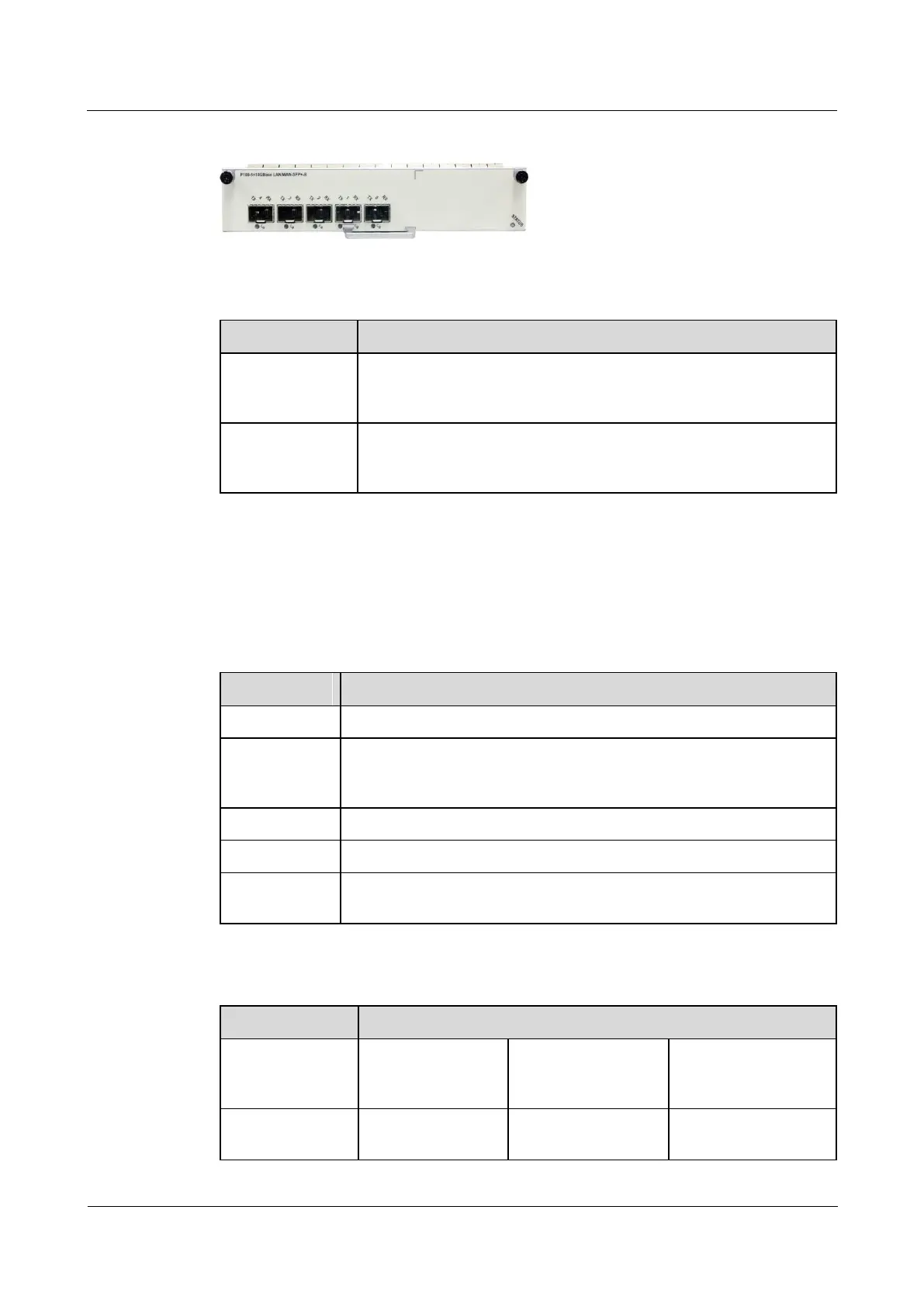

Figure 6-20 Appearance of the 5-Port 10GBase LAN/WAN-SFP+ Flexible Card B
Table 6-49 Indicators on the panel of the 5-Port 10GBase LAN/WAN-SFP+ Flexible Card B
Component
Description
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-50 lists the interface attributes of the 5-Port 10GBase LAN/WAN-SFP+ Flexible Card
B.
Table 6-50 Interface attributes of the 5-Port 10GBase LAN/WAN-SFP+ Flexible Card B
Attributes
Description
Connector type
LC/PC
Optical
interface
attributes
Compliant with the selected SFP+ optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
Table 6-51 Attributes of 10G SFP+ optical modules
Attributes
Description
Maximum
transmission
distance
0.3 km ( 0.19 mi. )
10 km ( 1.24 mi. )
40 km ( 24.86 mi. )
Center
wavelength
850 nm
1310 nm
1550 nm
