Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
214
Panel
Table 6-67 lists the indicators on the panel.

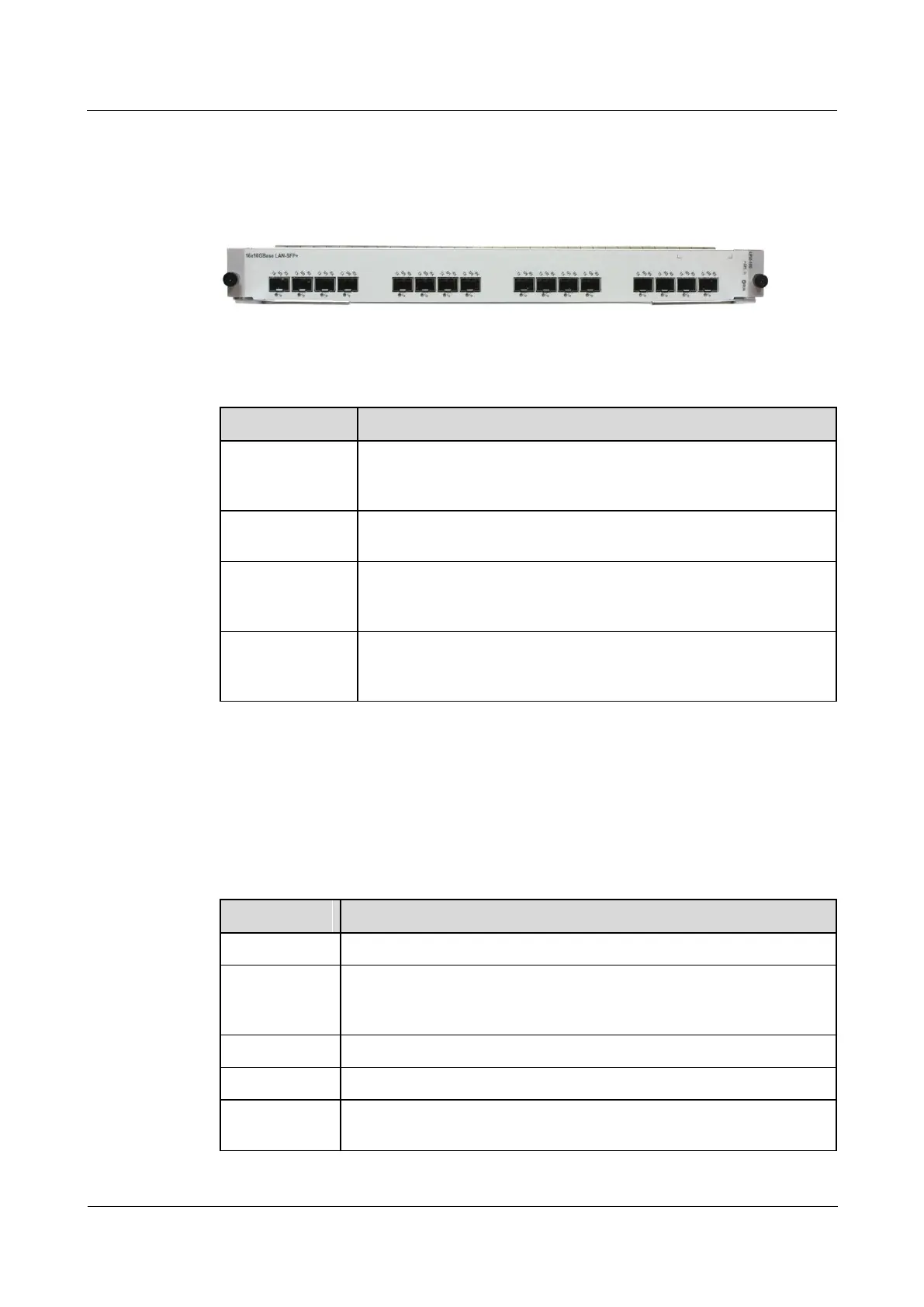

Figure 6-26 Appearance of the16-Port 10GBase LAN-SFP+ Integrated Line Processing Unit
Table 6-66 Indicators on the panel of the 16-Port 10GBase LAN-SFP+ Integrated Line Processing
Unit
Component
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for six seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-67 lists the interface attributes of the 16-Port 10GBase LAN-SFP+ Integrated Line
Processing Unit.
Table 6-67 Interface attributes of the 16-Port 10GBase LAN-SFP+ Integrated Line Processing
Unit
Attributes
Description
Connector type
LC/PC
Optical
interface
attributes
Compliant with the selected XFP optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
