Hot swap

Automatic recovery of configurations

Intermixing with other types of FPICs

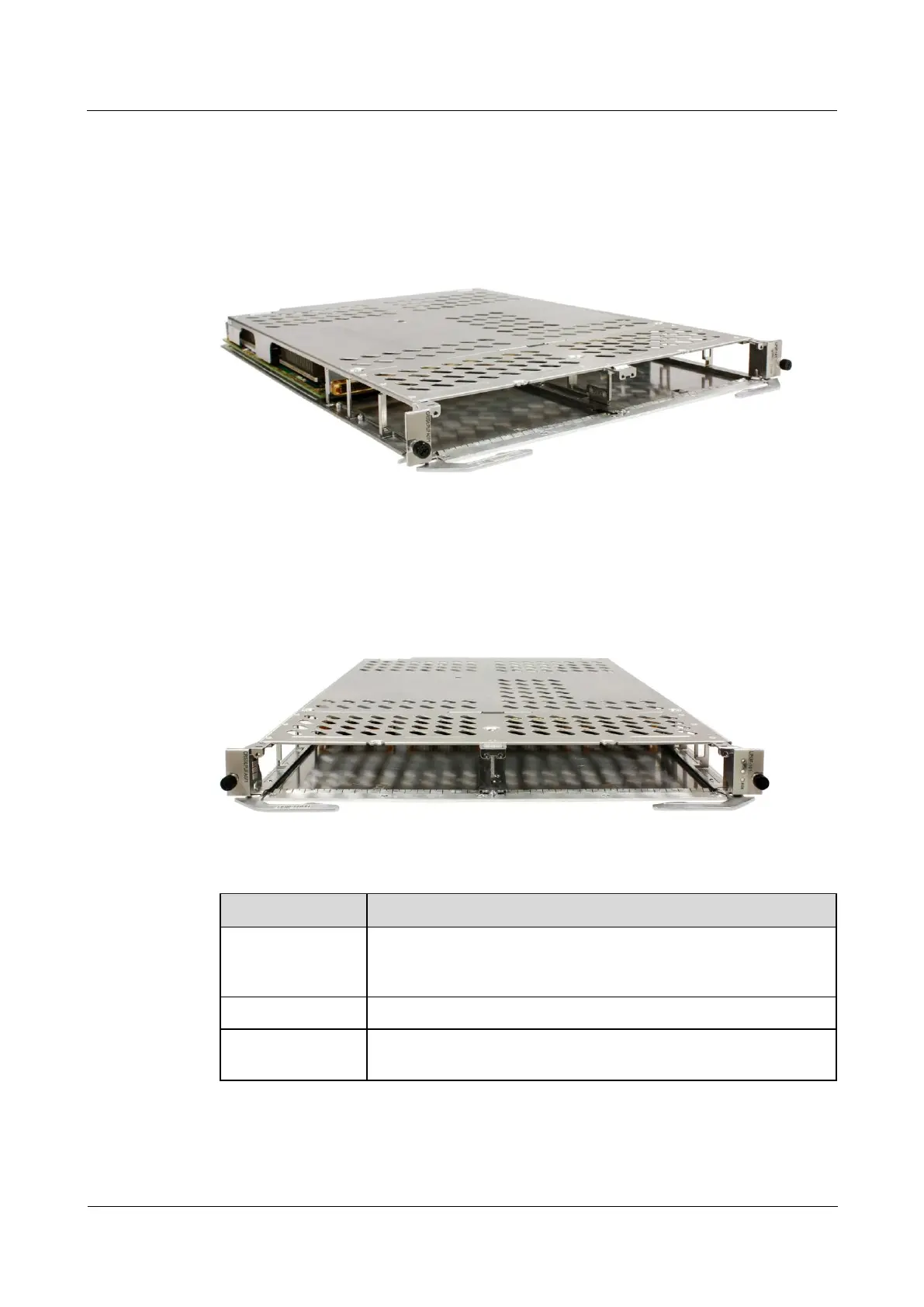

Figure 6-35 shows the appearance of the LPUF-101/LPUF-101-B.
Figure 6-35 Appearance of the LPUF-101/LPUF-101-B
Panel
Figure 6-36 shows the panel appearance of the LPUF-101/LPUF-101-B. Table 6-90 describes
the indicators on the panel.
Figure 6-36 Panel appearance of the LPUF-101/LPUF-101-B
Table 6-90 Indicators and button on the panel of the LPUF-101/LPUF-101-B
Indicator/Button
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about five
seconds till the OFL indicator is on.
OFL indicator (red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the
normal state.
