Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
256

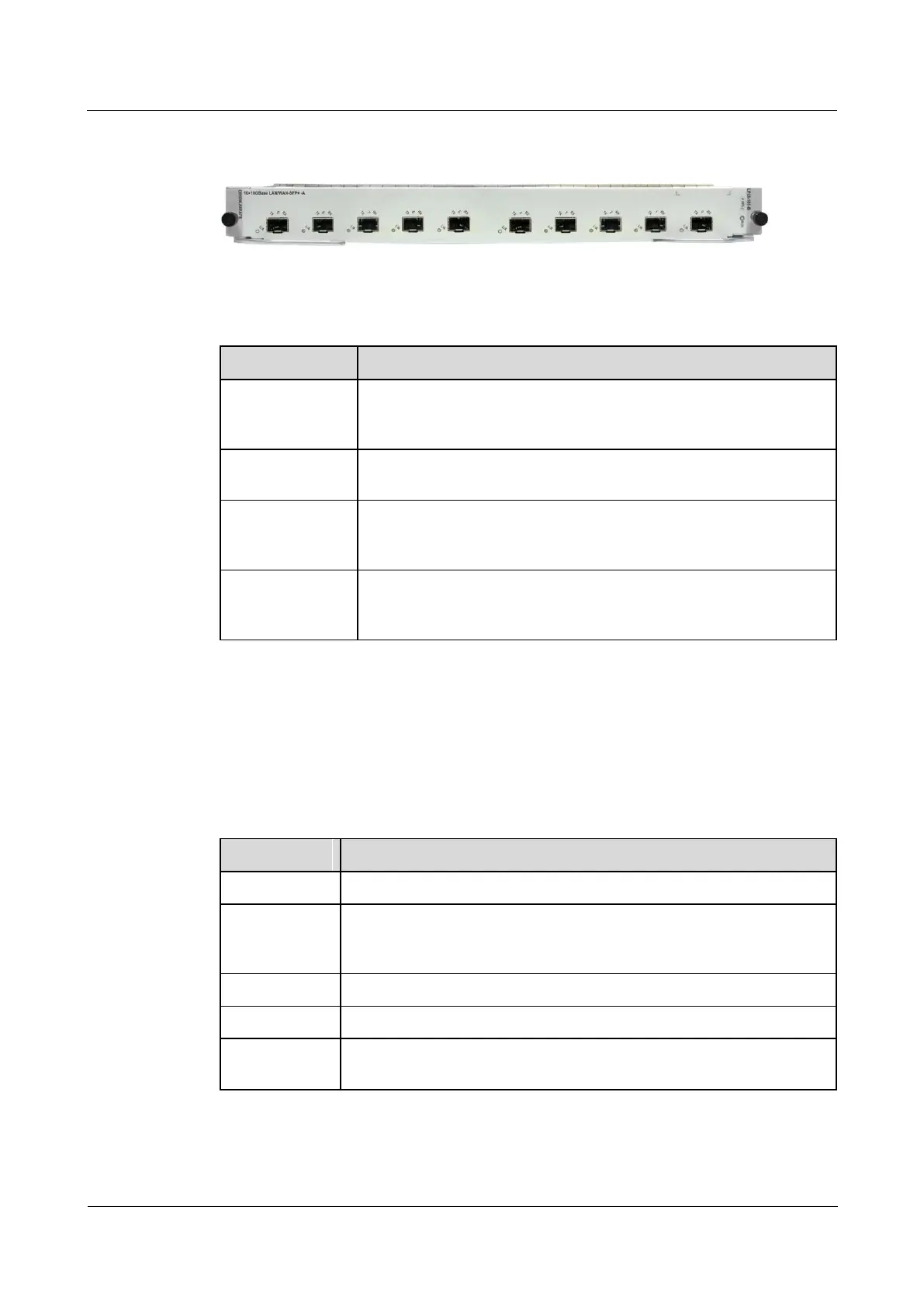

Figure 6-51 Appearance of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line Processing
Unit B
Table 6-129 Indicators on the panel of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line
Processing Unit B
Component
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-130 lists the interface attributes of the 10-Port 10GBase LAN/WAN-SFP+ Integrated
Line Processing Unit B.
Table 6-130 Interface attributes of the 10-Port 10GBase LAN/WAN-SFP+ Integrated Line
Processing Unit B
Attributes
Description
Connector type
LC/PC
Optical
interface
attributes
Compliant with the selected SFP+ optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
