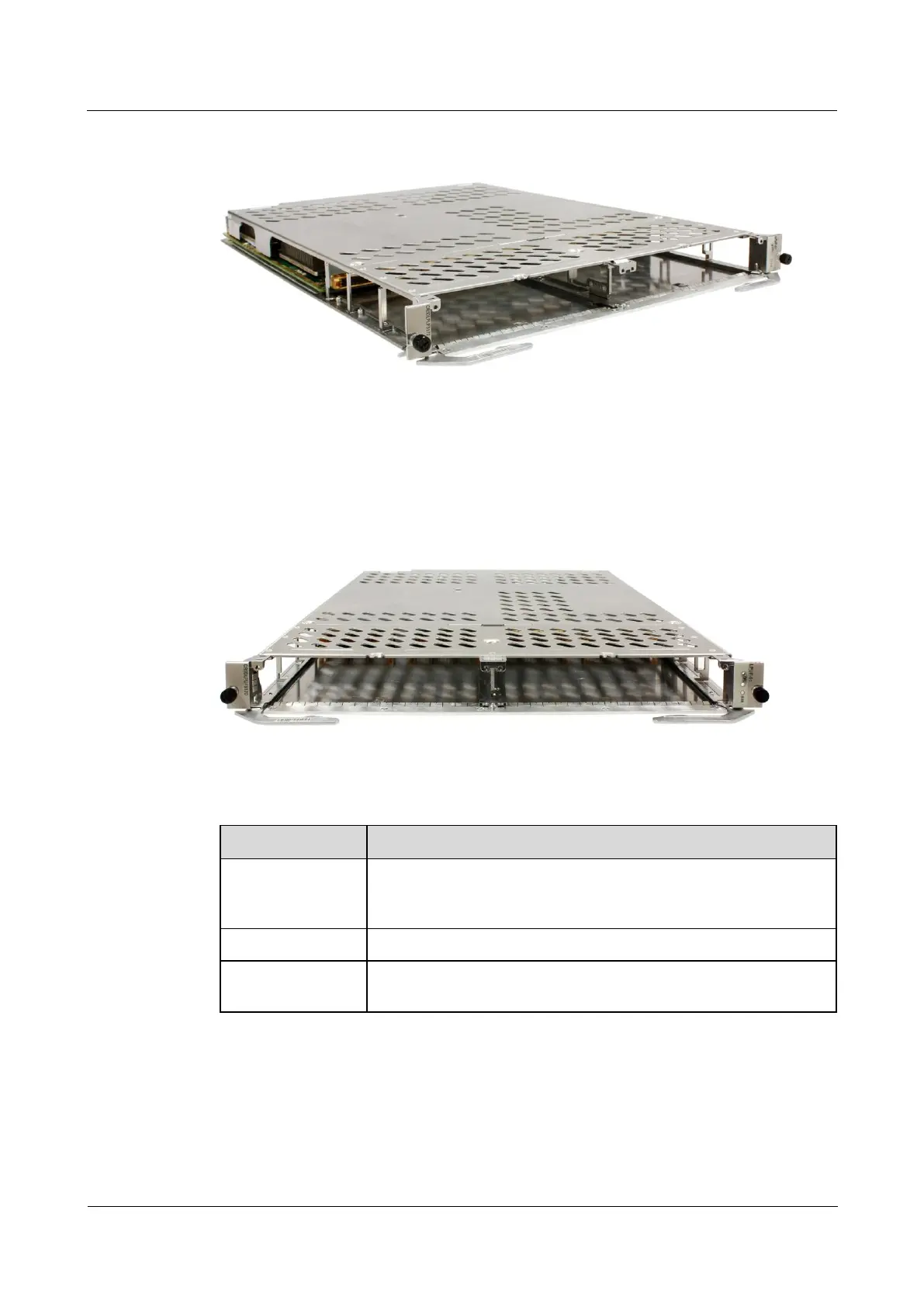

Figure 6-58 Appearance of the Flexible Card Line Processing Unit(LPUF-51/LPUF-51-B,two
sub-slots)
Panel
Follow shows the panel appearance of the Flexible Card Line Processing
Unit(LPUF-51/LPUF-51-B,two sub-slots). Table 6-149 describes the indicators on the panel.
Figure 6-59 Panel appearance of the Flexible Card Line Processing
Unit(LPUF-51/LPUF-51-B,two sub-slots)
Table 6-149 Indicators and button on the panel of the Flexible Card Line Processing
Unit(LPUF-51/LPUF-51-B,two sub-slots)
Indicator/Button
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about five
seconds till the OFL indicator is on.
OFL indicator (red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the
normal state.
Technical Specifications
Table 6-150 lists the technical specifications of the Flexible Card Line Processing
Unit(LPUF-51/LPUF-51-B,two sub-slots).
