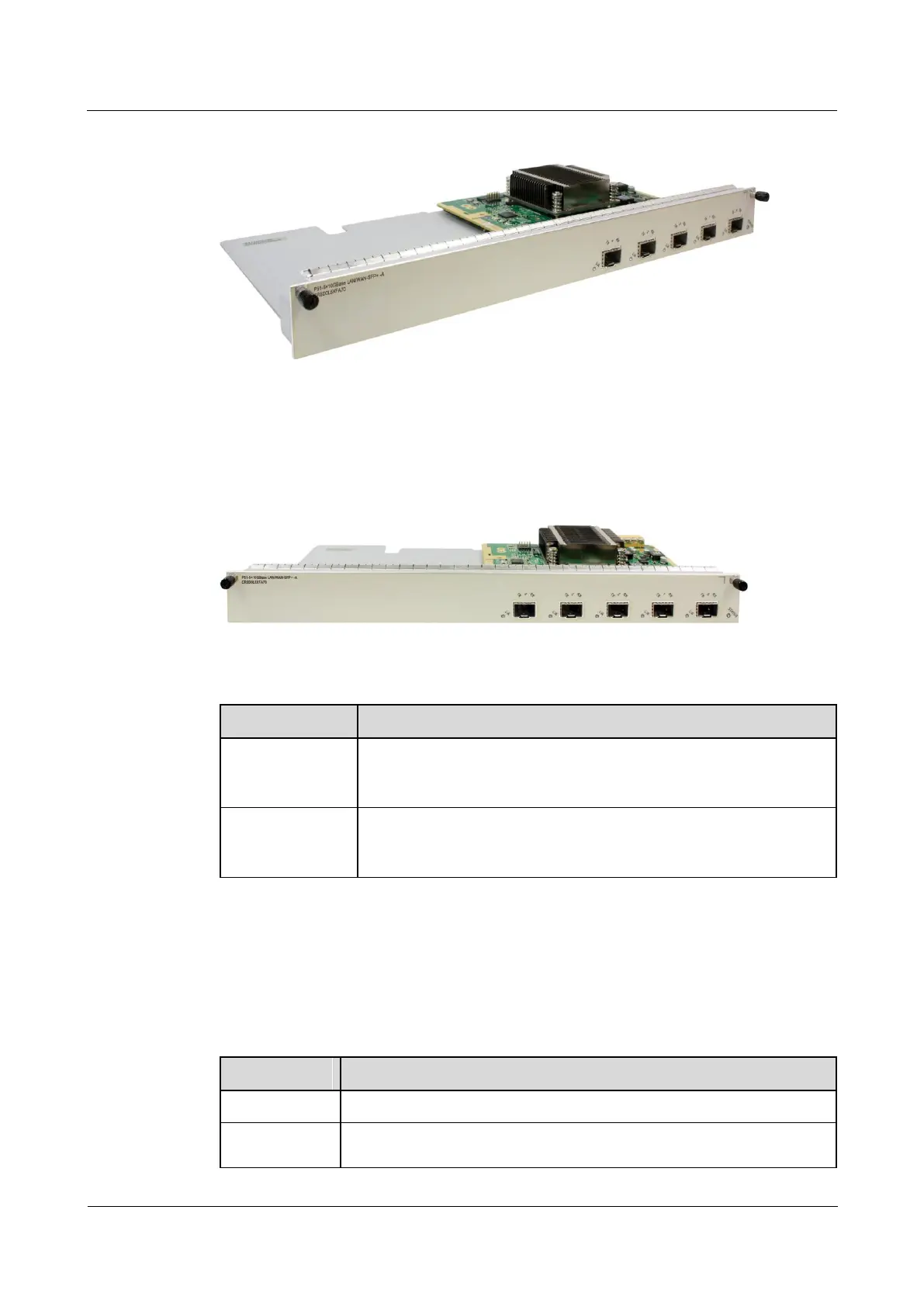

Figure 6-62 Appearance of the 5-Port 10GBase LAN/WAN-SFP+Flexible Card A
Panel
Table 6-159 lists the indicators on the panel.
Figure 6-63 Appearance of the 5-Port 10GBase LAN/WAN-SFP+Flexible Card A
Table 6-158 Indicators on the panel of the 5-Port 10GBase LAN/WAN-SFP+Flexible Card A
Component
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
LINK/ACT
indicator (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-159 lists the interface attributes of the 5-Port 10GBase LAN/WAN-SFP+Flexible
Card A.
Table 6-159 Interface attributes of the 5-Port 10GBase LAN/WAN-SFP+Flexible Card A
Attributes
Description
Connector type
LC/PC
Optical
interface
Compliant with the selected SFP+optical module.
