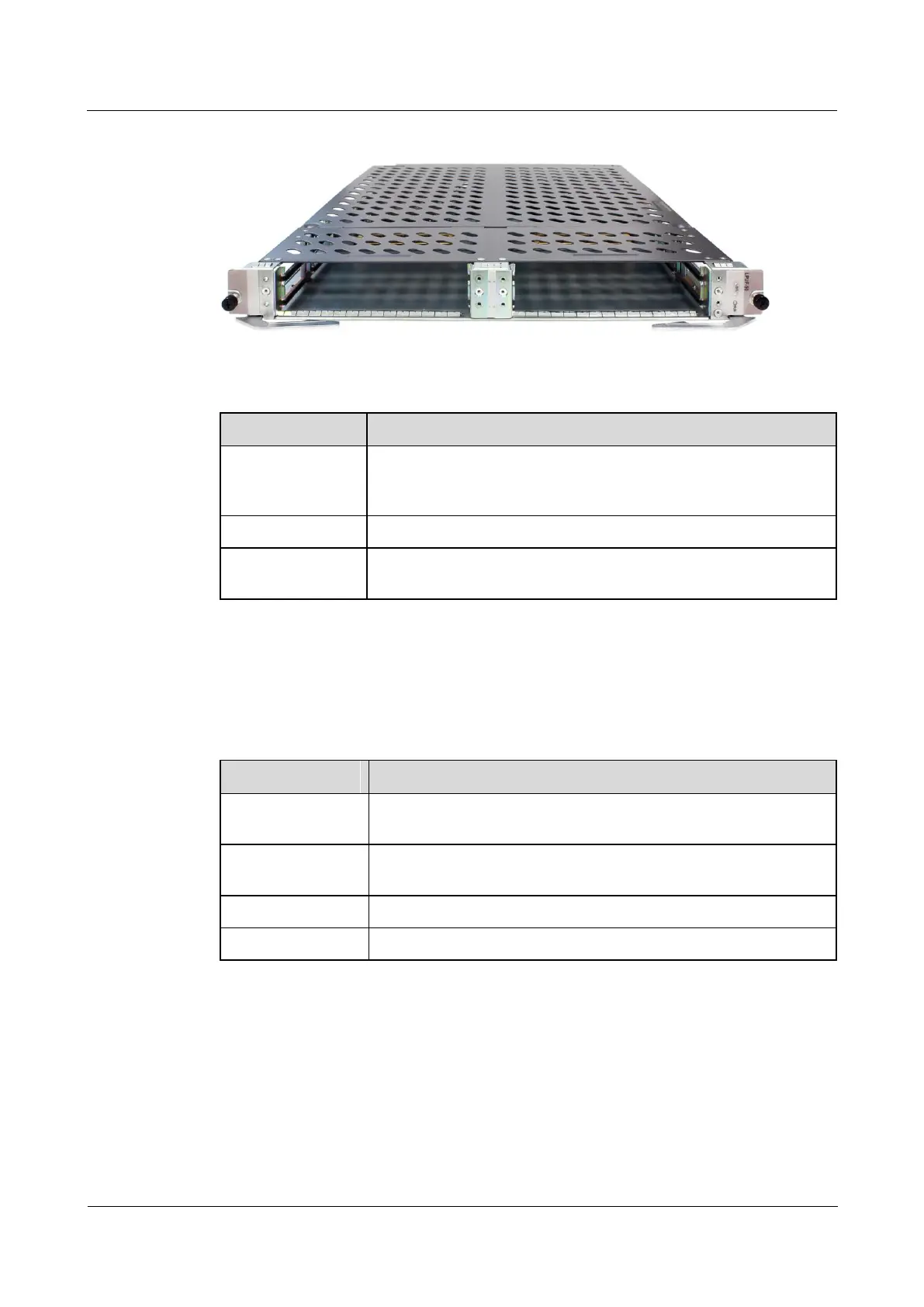

Figure 6-97 Panel appearance of the LPUF-50
Table 6-255 Indicators and button on the panel of the LPUF-50
Indicator/Button
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about 5s till
the OFL indicator is on.
OFL indicator (red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the
normal state state.
Technical Specifications
Table 6-256 lists the technical specifications of the LPUF-50.
Table 6-256 Technical specifications of the LPUF-50
Item
Specifications
Dimensions (width
x depth x height)
399 mm x 551 mm x 41 mm ( 15.71 in. x 21.69 in. x 1.61 in. )
Power consumption
(typical value)
184 W
Heat dissipation
596.97 BTU/hour
Board weight
8.2 kg ( 18.08 lb )
Product Specifications
Table 6-257 lists the product specifications of the LPUF-50.
