Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
361

Electrical interface SFP module, providing features of the 1000M electrical interfaces

Intermixing of the preceding modules

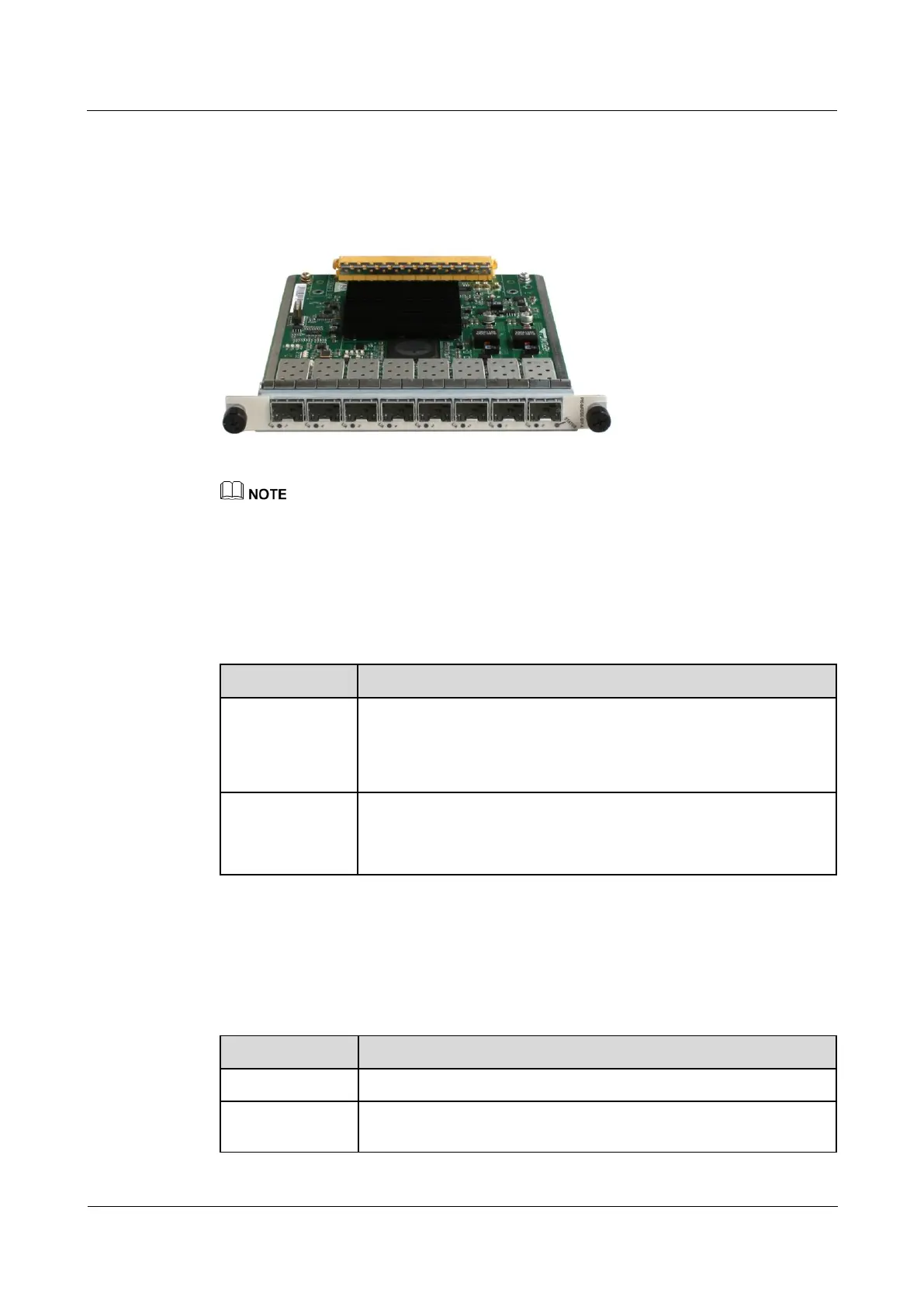

Figure 6-113 Appearance of the 8-port 100/1000 Base-X-SFP Flexible Card A (Supporting
1588v2)
The 8-port 100/1000 Base-X-SFP Flexible Card A does not support convergence when installed on an
LPU (LPUF-50, occupying four sub-slots).
Panel
Table 6-287 describes the indicators on the panel.
Table 6-287 Indicators on the panel of the 8-port 100/1000 Base-X-SFP Flexible Card A
Indicator
Description
STATUS
indicator (green)
If the indicator blinks every 2s (0.5 Hz), the flexible card is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the flexible card is in the
alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
Interface Attributes
Table 6-288 lists the interface attributes of the 8-port 100/1000 Base-X-SFP Flexible Card A.
Table 6-288 Interface attributes of the 8-port 100/1000 Base-X-SFP Flexible Card A
Attributes
Description
Connector type
LC/PC, RJ45
Optical interface
attributes
Compliant with the selected SFP optical module
