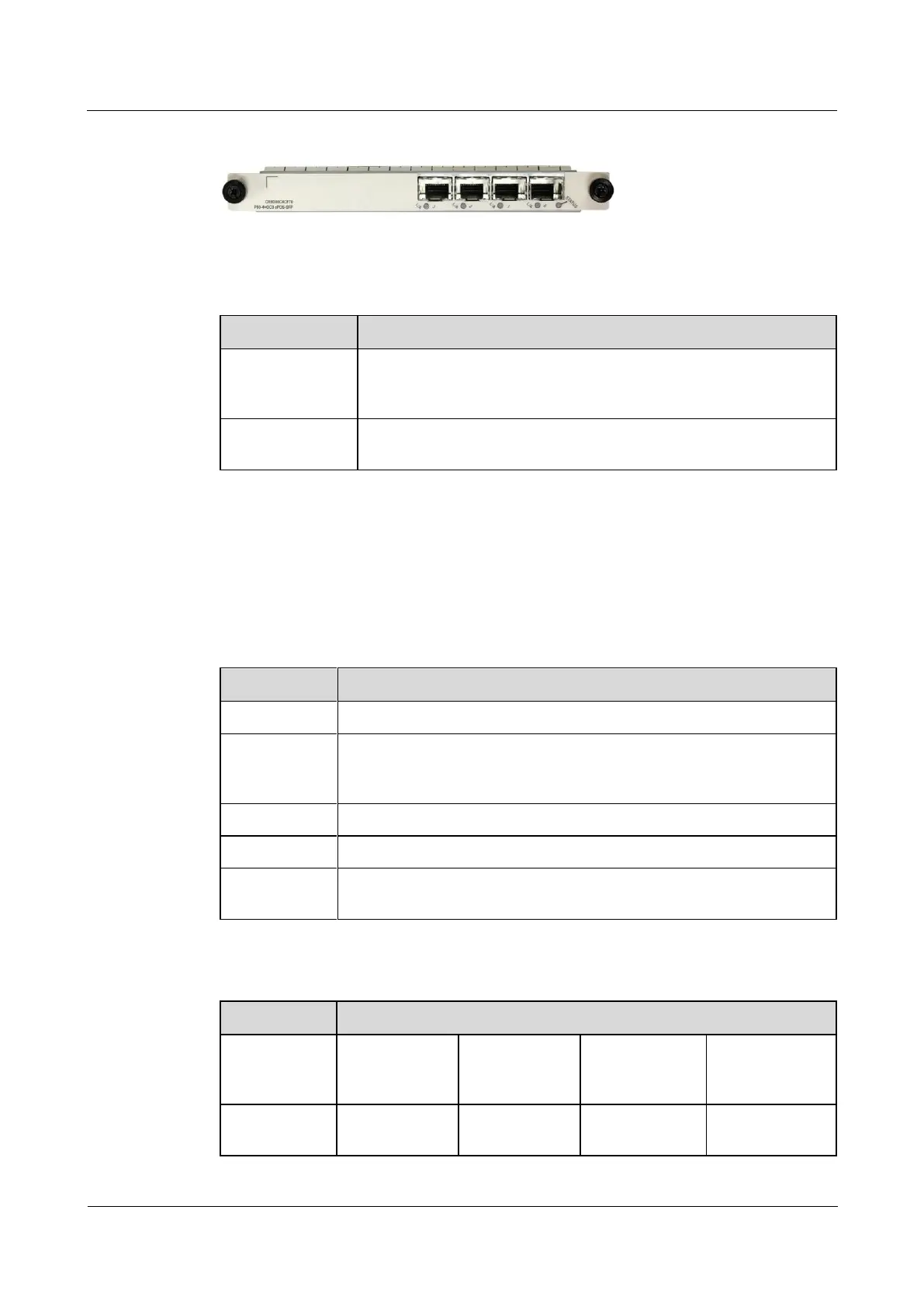

Figure 6-121 Panel appearance of the 4-Port Channelized OC-3c/STM-1c POS-SFP Flexible Card
Table 6-309 Indicators on the panel of the 4-Port Channelized OC-3c/STM-1c POS-SFP Flexible
Card
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-310 lists the interface attributes of the 4-Port Channelized OC-3c/STM-1c POS-SFP
Flexible Card.
Table 6-310 Interface attributes of the 4-Port Channelized OC-3c/STM-1c POS-SFP Flexible
Card
Attributes
Description
Connector type
LC/PC
Optical
interface
attributes
Compliant with the selected SFP optical module (for the attributes of SFP
modules, see Table 6-311)
Working mode
Full-duplex
Link protocol
HDLC, PPP, MP, or cRTP
Network
protocol
IP
Table 6-311 Attributes of 155M SFP optical modules
Attributes
Description
Maximum
transmission
distance
2 km ( 1.24
mi. )
15 km ( 9.32
mi. )
40 km ( 24.86
mi. )
80 km ( 49.71
mi. )
Center
wavelength
1310 nm
1310 nm
1310 nm
1550 nm
