Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
387

Provides FE optical modules, supporting features of FE optical interfaces.

Provides electrical interface SFP modules, supporting features of the 1000M electrical
interfaces.

Supports intermixing of the preceding modules.

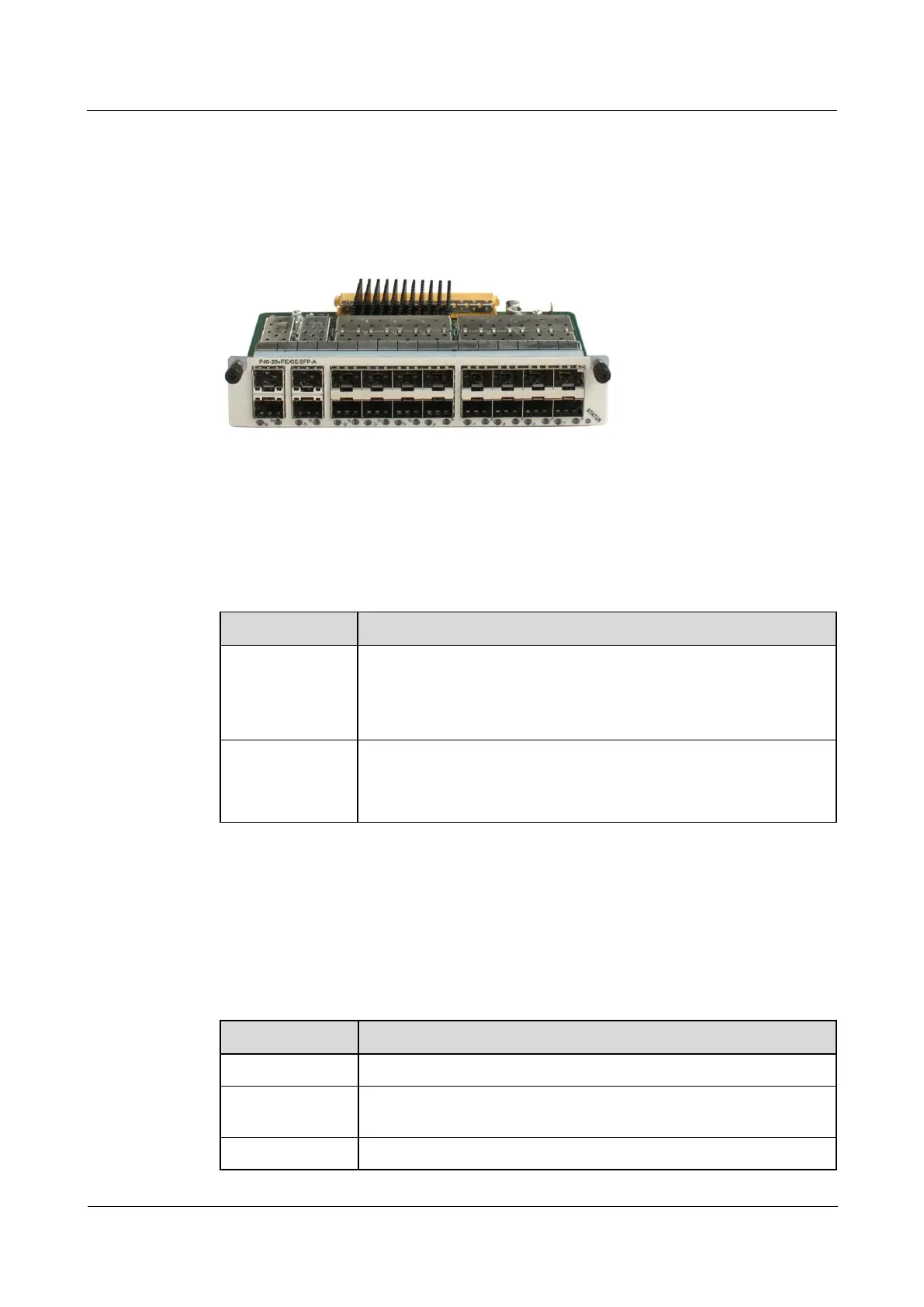

Figure 6-128 Appearance of the 220-port 100/1000Base-X-SFP FPIC A(Supporting 1588v2)
Panel
Table 6-328 describes the indicators on the panel.
Table 6-328 Indicators on the panel of the 20-Port 100/1000Base-X-SFP FPIC A(Supporting
1588v2)
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the FPIC is in the alarm
state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
Interface Attributes
Table 6-329 lists the interface attributes of the 20-Port 100/1000Base-X-SFP FPIC
A(Supporting 1588v2).
Table 6-329 Interface attributes of the 20-Port 100/1000Base-X-SFP flecible card A(Supporting
1588v2)
Attributes
Description
Connector type
LC/PC
Optical interface
attributes
Compliant with the selected SFP optical module.
Working mode
Full-duplex
