Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
416
4-Port 10GBase LAN/WAN-XFP Flexible Card supports the oversubscription mode. Four ports can be
converged to 20 Gbit/s in average.
Panel

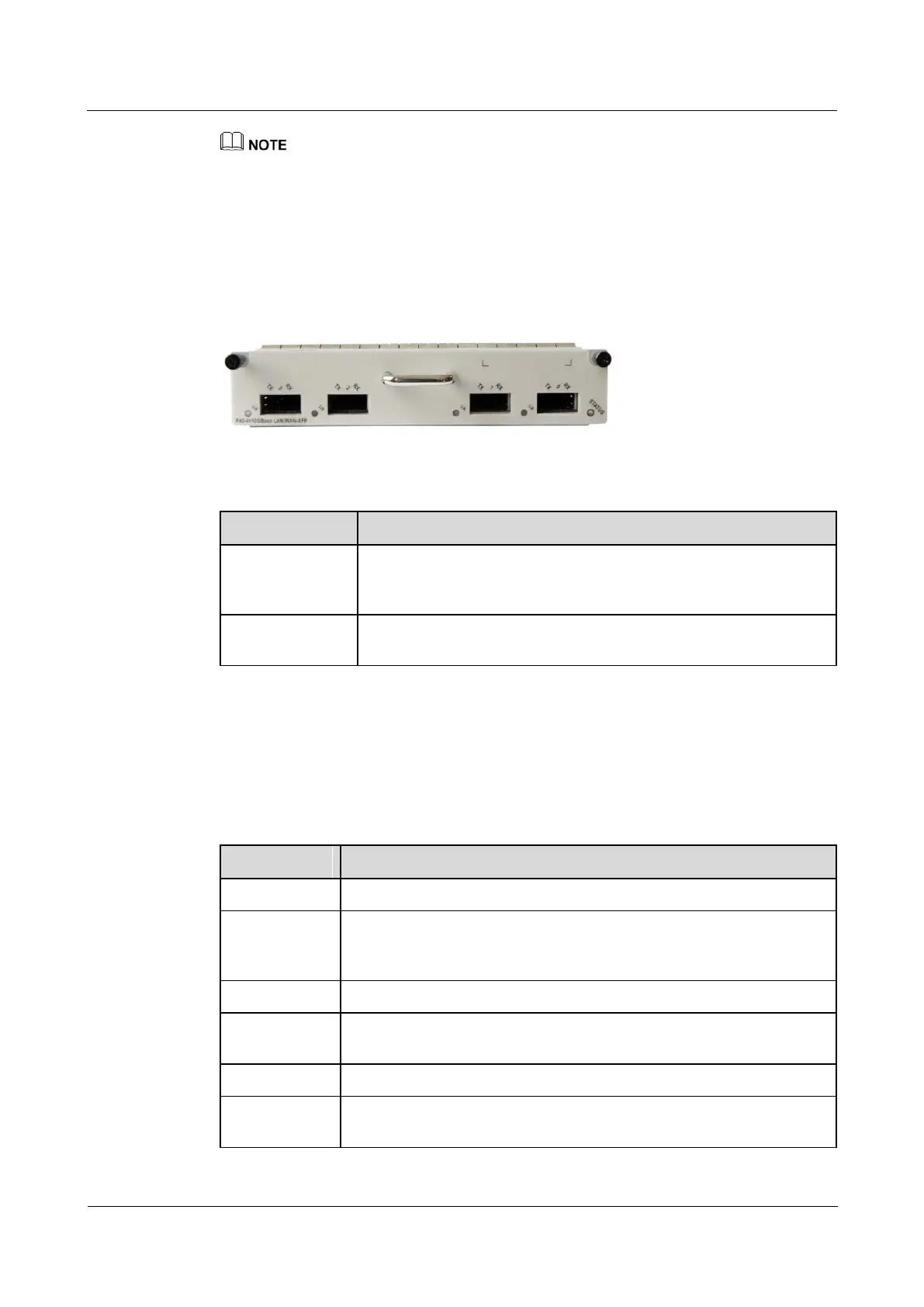

Figure 6-142 shows the panel appearance of the 4-Port 10GBase LAN/WAN-XFP Flexible
Card . Table 6-380 describes the indicators on the panel.
Figure 6-142 Panel appearance of the 4-Port 10GBase LAN/WAN-XFP Flexible Card
Table 6-380 Indicators on the panel of the 4-Port 10GBase LAN/WAN-XFP Flexible Card
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
L/A indicator
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-381 lists the interface attributes of the 4-Port 10GBase LAN/WAN-XFP Flexible
Card .
Table 6-381 Interface attributes of the 4-Port 10GBase LAN/WAN-XFP Flexible Card
Attributes
Description
Connector type
LC/PC
Optical
interface
attributes
Compliant with the selected XFP optical module.(for the attributes of
XFP modules, see Table 6-382)
Working mode
Full-duplex
Compliant
standard
IEEE 802.3ae
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
