Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
423

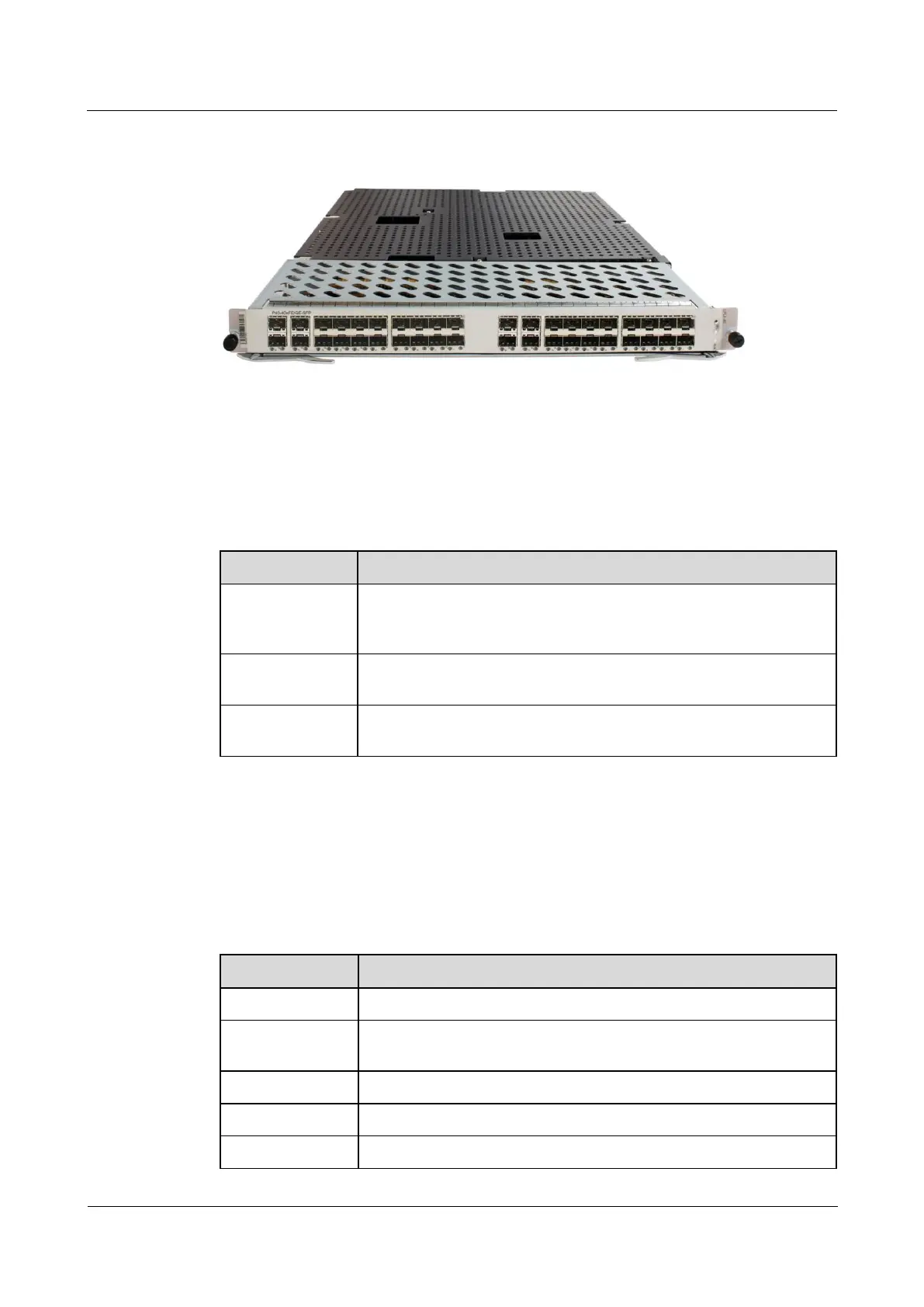

Figure 6-144 Appearance of the 40-Port 100/1000Base-X-SFP Integrated Line Processing
Unit(LPUI-40)
Panel
Table 6-392 lists the indicators on the panel.
Table 6-392 Indicators on the panel of the 40-Port 100/1000Base-X-SFP Integrated Line
Processing Unit(LPUI-40)
Component
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about 5s till the
OFL indicator is on.
OFL indicator
(red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the normal
state.
Interface Attributes
Table 6-393 lists the interface attributes of the 40-Port 100/1000Base-X-SFP Integrated Line
Processing Unit(LPUI-40).
Table 6-393 Interface attributes of the 40-Port 100/1000Base-X-SFP Integrated Line Processing
Unit(LPUI-40)
Attributes
Description
Connector type
LC/PC,RJ45
Optical interface
attributes
Compliant with the selected SFP optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network protocol
IP
