Huawei NetEngine40E

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
436

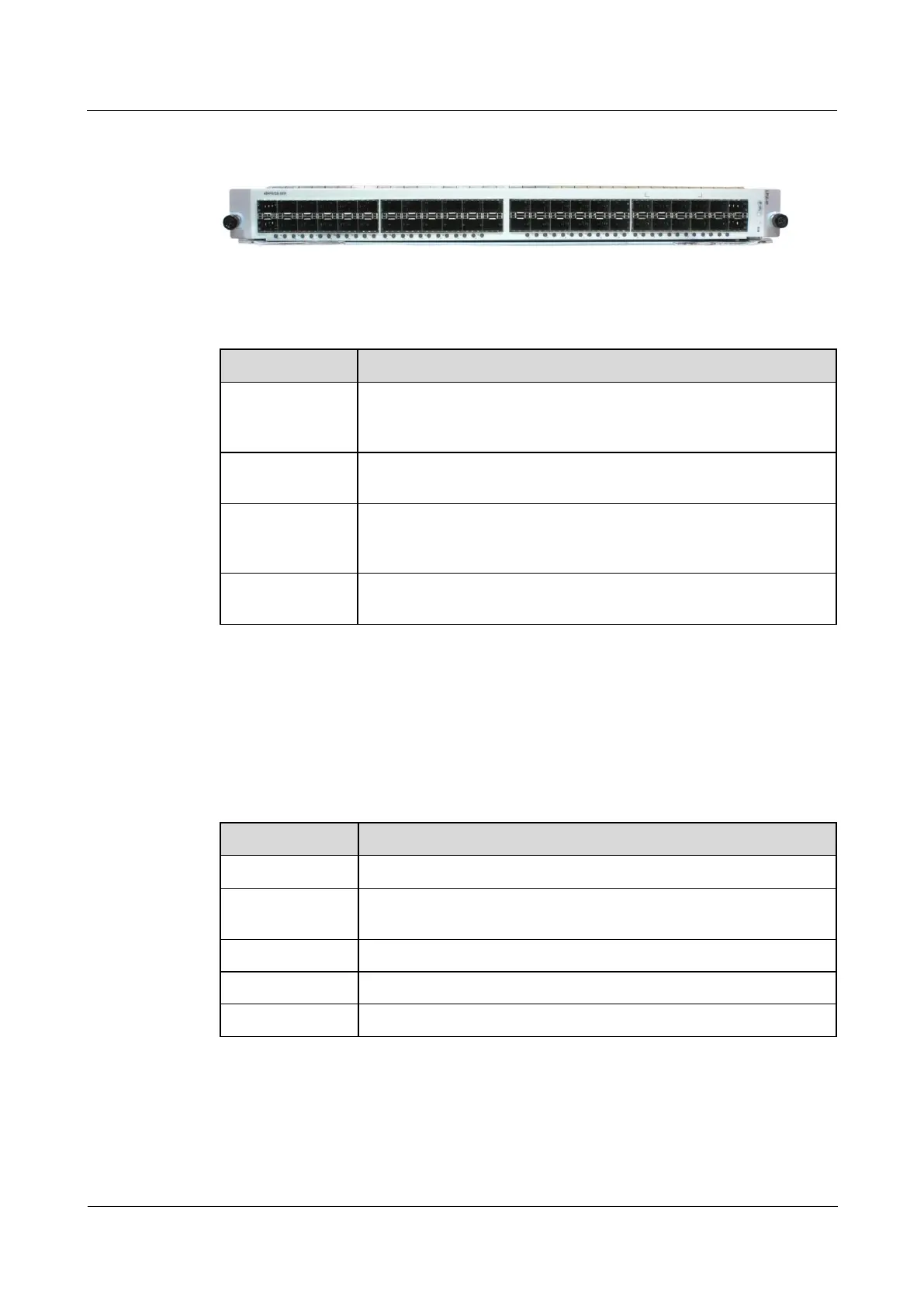

Figure 6-150 Panel appearance of the 48-port 100/1000Base-X SFP Integrated Line Processing
Unit
Table 6-410 Indicators on the panel of the 48-port 100/1000Base-X SFP Integrated Line
Processing Unit
Component
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-411 lists the interface attributes of the 48-port 100/1000Base-X SFP Integrated Line
Processing Unit.
Table 6-411 Interface attributes of the 48-port 100/1000Base-X SFP Integrated Line Processing
Unit
Attributes
Description
Connector type
LC/PC
Optical interface
attributes
Compliant with the selected SFP optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network protocol
IP
