HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

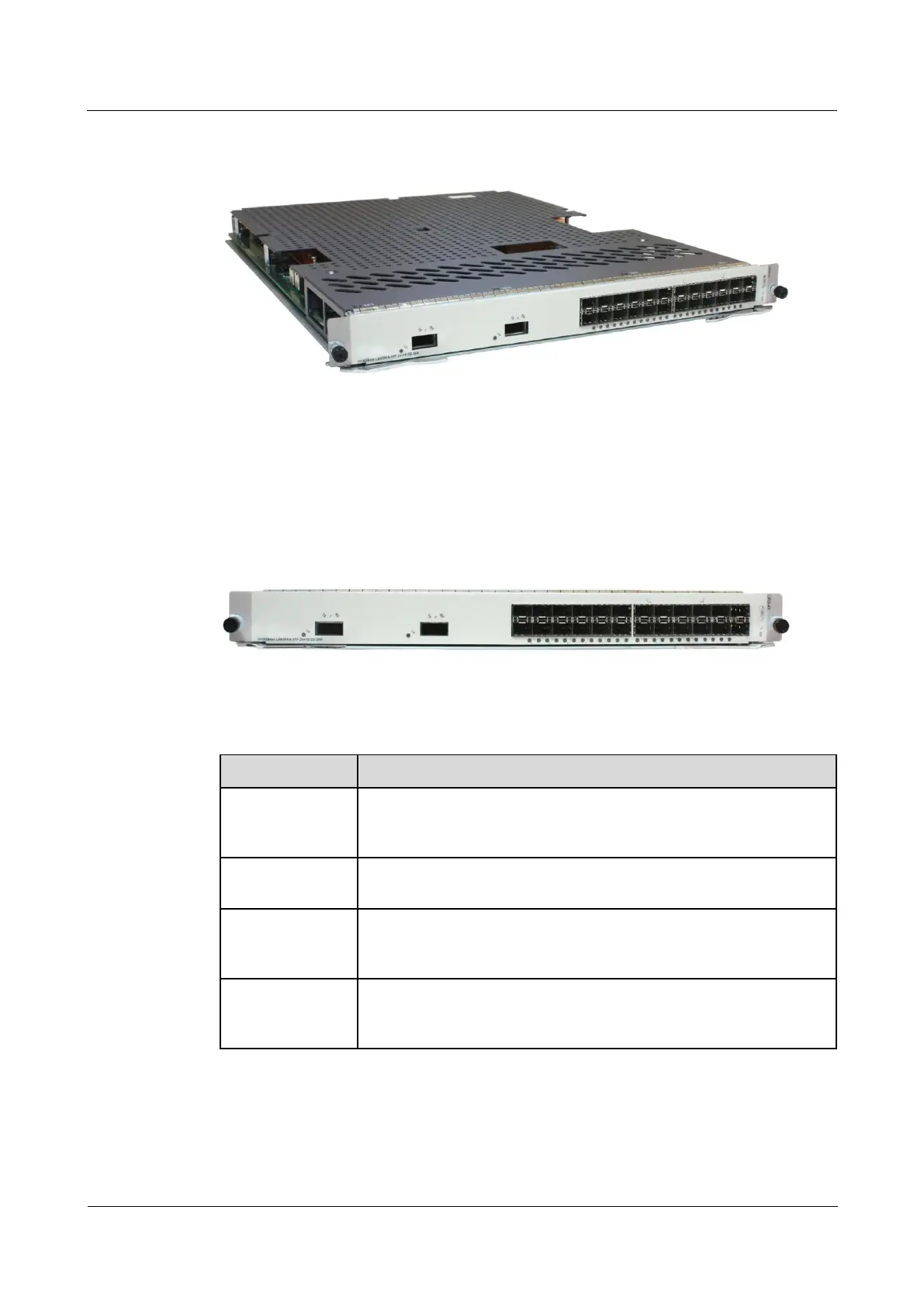

Figure 6-151 Appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port 100/1000Base-X-SFP
LPUI
Panel
Figure 6-152shows the panel appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUI. Table 6-416 describes the indicators on the panel.
Figure 6-152 Panel appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUI
Table 6-416 Indicators on the panel of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUI
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
