HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Overview

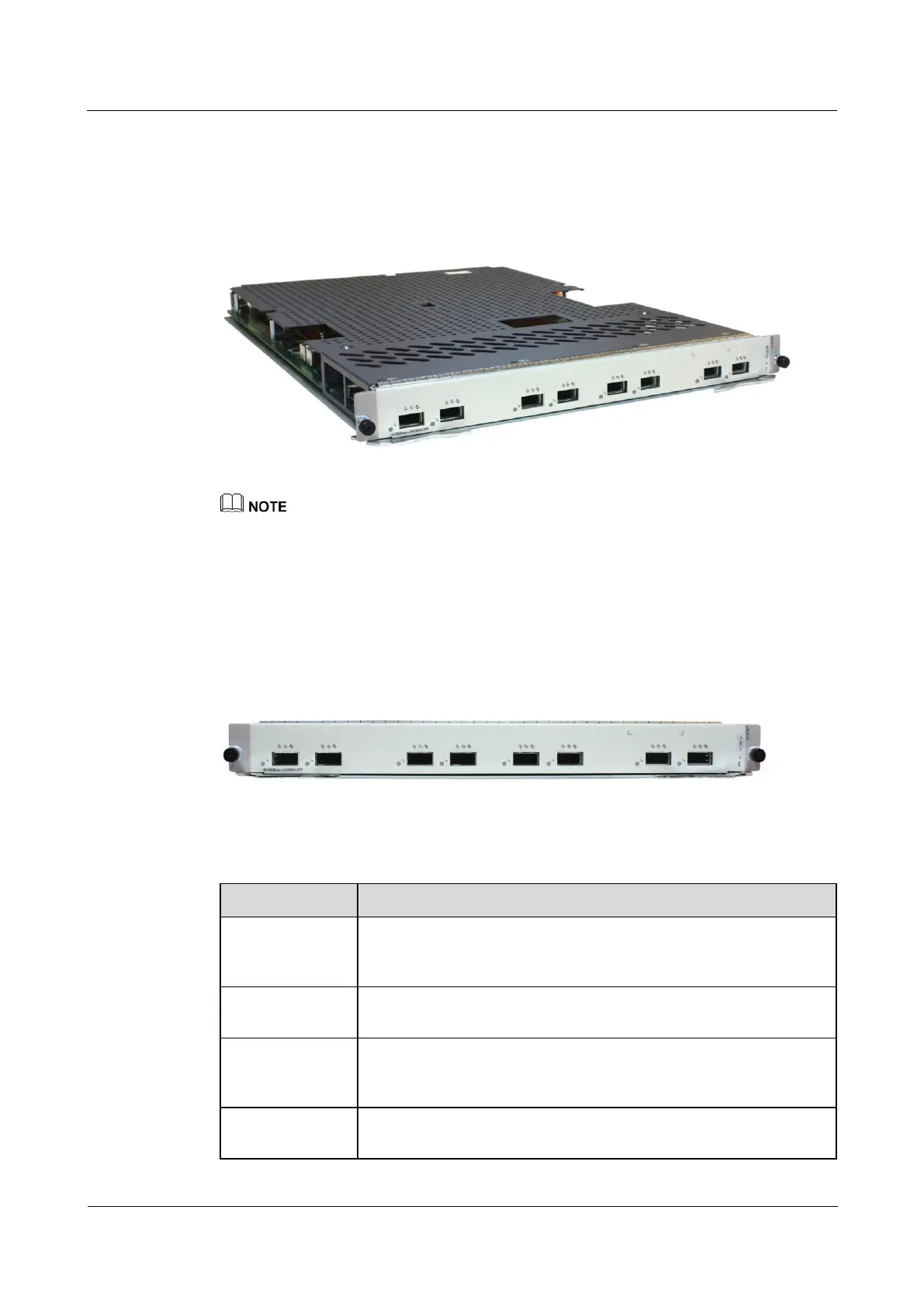

Figure 6-159 shows the appearance of the 8-Port 10GBase LAN/WAN-XFP Line Processing
Unit S. 1588v2 and HQoS are not supported on this board.
Figure 6-159 Appearance of the 8-Port 10GBase LAN/WAN-XFP Line Processing Unit S
The 8-Port 10GBase LAN/WAN-XFP Line Processing Unit S supports the oversubscription mode. The
left-most four ports can be converged to 20 Gbit/s in average. The right-most four ports can be
converged to 20 Gbit/s in average.
Panel
Figure 6-160shows the panel appearance of the 8-Port 10GBase LAN/WAN-XFP Line
Processing Unit S. Table 6-444 describes the indicators on the panel.
Figure 6-160 Panel appearance of the 8-Port 10GBase LAN/WAN-XFP Line Processing Unit S
Table 6-444 Indicators on the panel of the 8-Port 10GBase LAN/WAN-XFP Line Processing
Unit S
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
If the indicator is steady on, it indicates that you can remove the
board.
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
