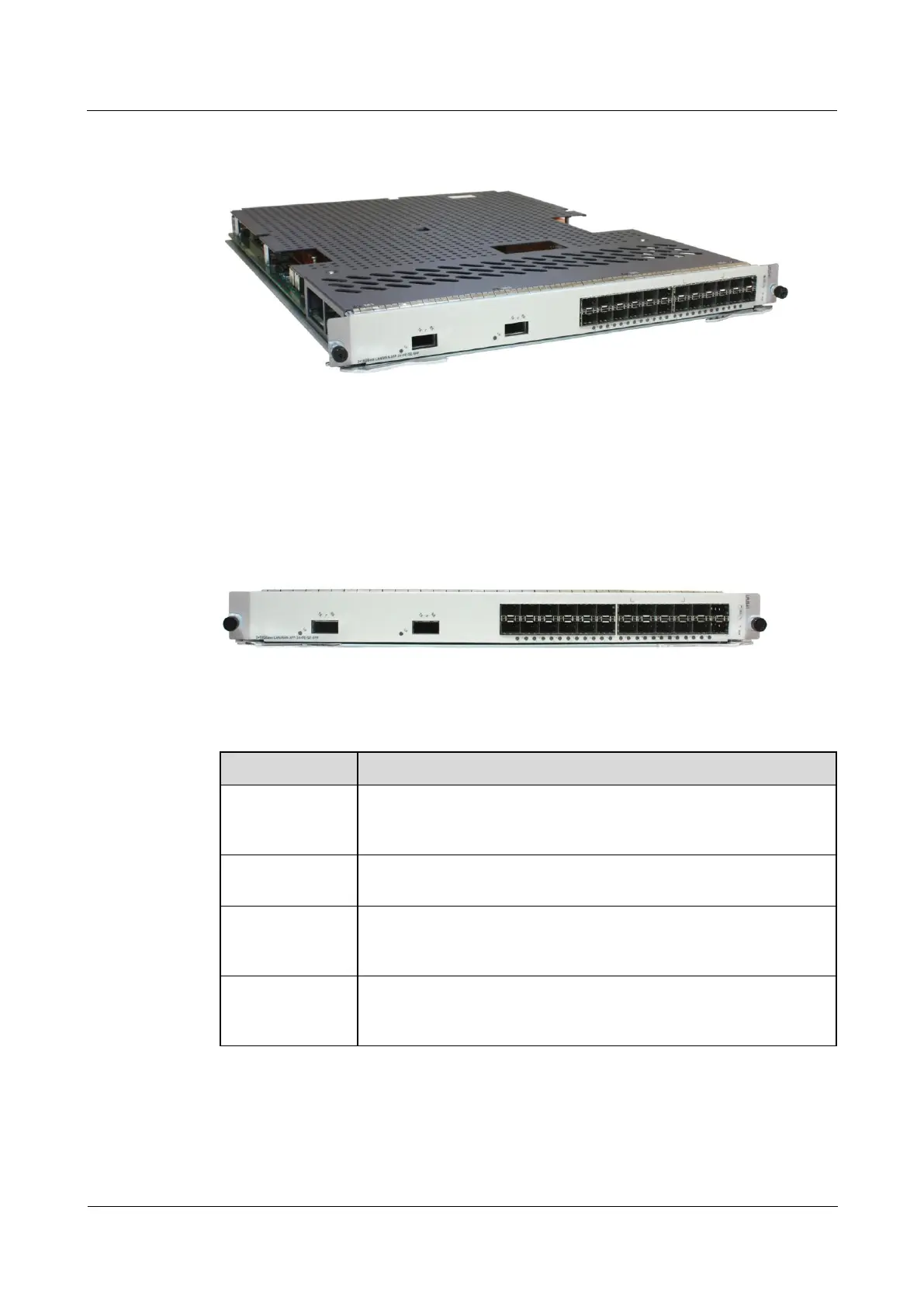

Figure 6-165 Appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port 100/1000Base-X-SFP
LPUS
Panel
Figure 6-166shows the panel appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUS. Table 6-462 describes the indicators on the panel.
Figure 6-166 Panel appearance of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUS
Table 6-462 Indicators on the panel of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUS
Indicator
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-463 lists the interface attributes of the 2-port 10GBase LAN/WAN-XFP+24-Port
100/1000Base-X-SFP LPUS.
