Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
481
The following optical modules can be installed on the sixteen 100/1000Base interfaces:

GE optical module, providing features of GE optical interfaces.

FE optical module, providing features of FE optical interfaces.

Electrical interface SFP module, providing features of the 1000M electrical interfaces.

Intermixing of the preceding modules.

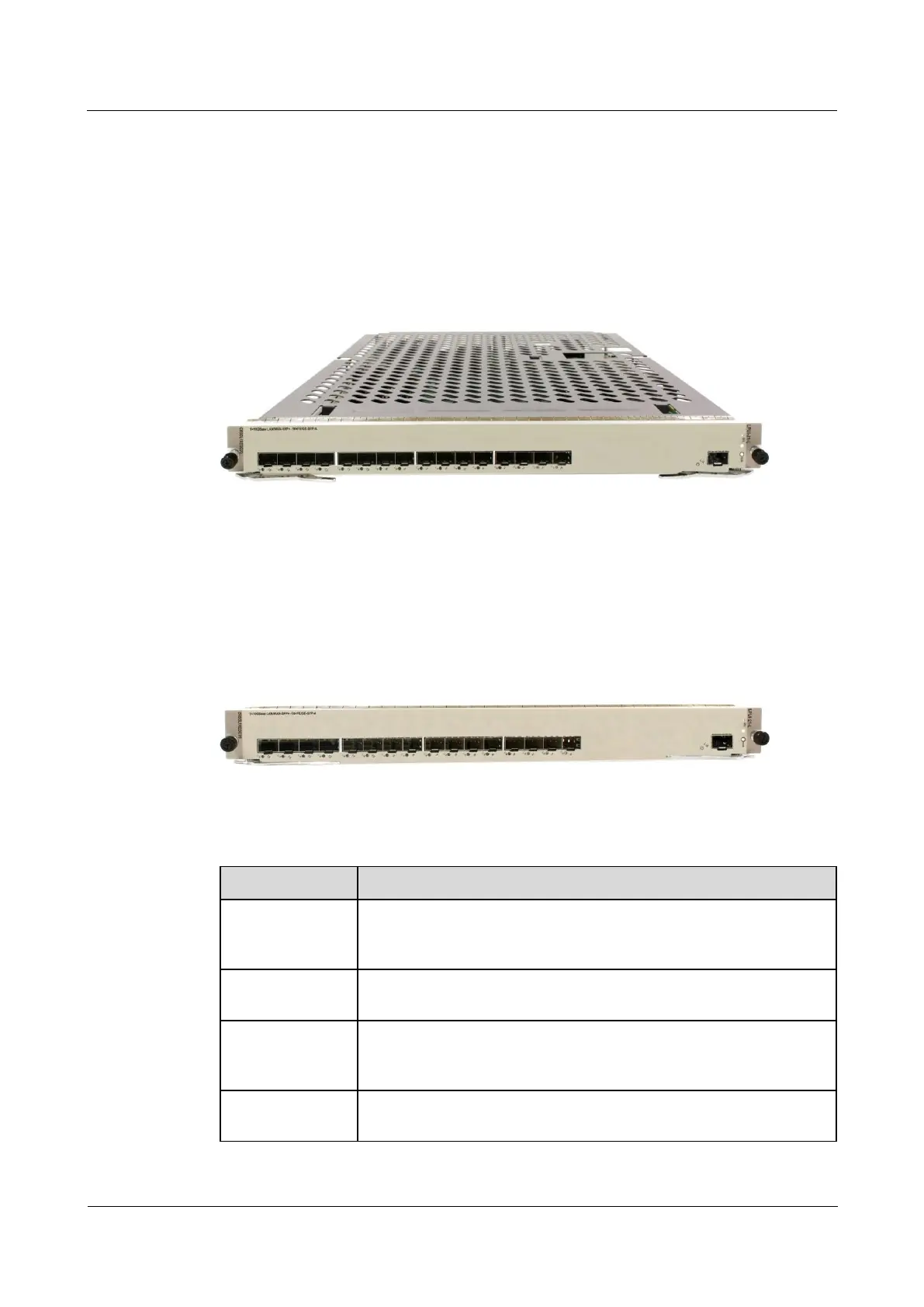

Figure 6-169 Appearance of the 1-Port 10GBase LAN/WAN-SFP+ + 16-Port
100/1000Base-X-SFP Integrated Line Processing Unit L
Panel
Figure 6-170 shows the panel appearance of the 1-Port 10GBase LAN/WAN-SFP+ + 16-Port
100/1000Base-X-SFP Integrated Line Processing Unit L. Table 6-476 describes the indicators
on the panel.
Figure 6-170 Panel appearance of the 1-Port 10GBase LAN/WAN-SFP+ + 16-Port
100/1000Base-X-SFP Integrated Line Processing Unit L
Table 6-476 Indicators on the panel of the 1-Port 10GBase LAN/WAN-SFP+ + 16-Port
100/1000Base-X-SFP Integrated Line Processing Unit L
Component
Description
OFL button
It is an OFL button. Before removing a board, press the OFL button.
Hold the button for five seconds till the OFL indicator is on. Then, the
board can be pulled out.
OFL indicator
(red)
If the indicator is steady on, it indicates that you can remove the
board.
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
