Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
489

Provides 1000M electrical interfaces through the electrical module

Supports intermixing of all modules

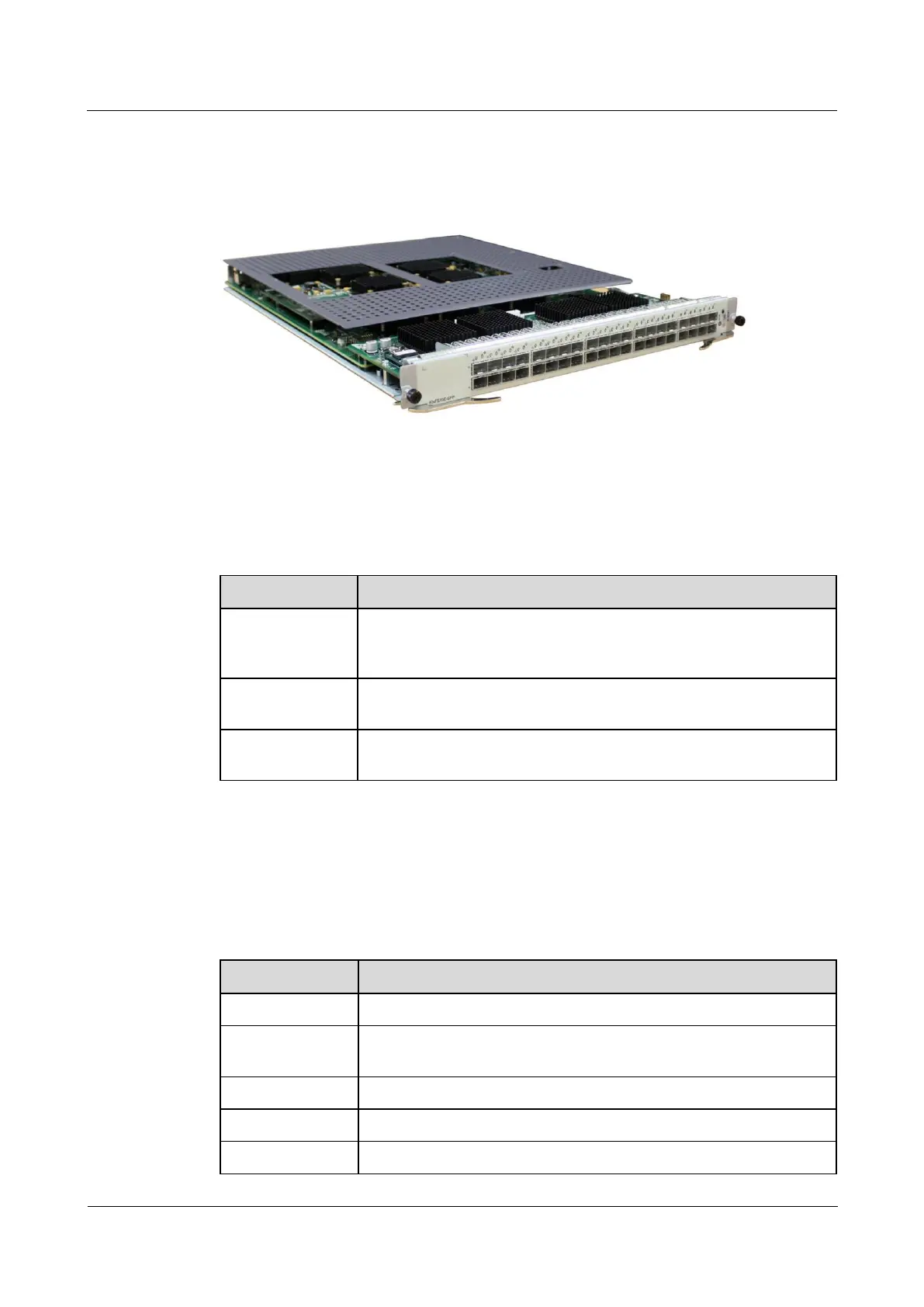

Figure 6-172 Appearance of the 40-port 100/1000Base-SFP Line Processing Unit S
Panel
Table 6-489 describes the indicators on the panel.
Table 6-489 Indicators on the panel of the 40-port 100/1000Base-SFP Line Processing Unit S
Indicator
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about 5s till the
OFL indicator is on.
OFL indicator
(red)
If the indicator is on, you can remove the board safely.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the normal
state.
Interface Attributes
Table 6-490 lists the interface attributes of the 40-port 100/1000Base-SFP Line Processing
Unit S.
Table 6-490 Interface attributes of the 40-port 100/1000Base-SFP Line Processing Unit S
Attributes
Description
Connector type
LC/PC
Optical interface
attributes
Compliant with the selected SFP optical module
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network protocol
IP
