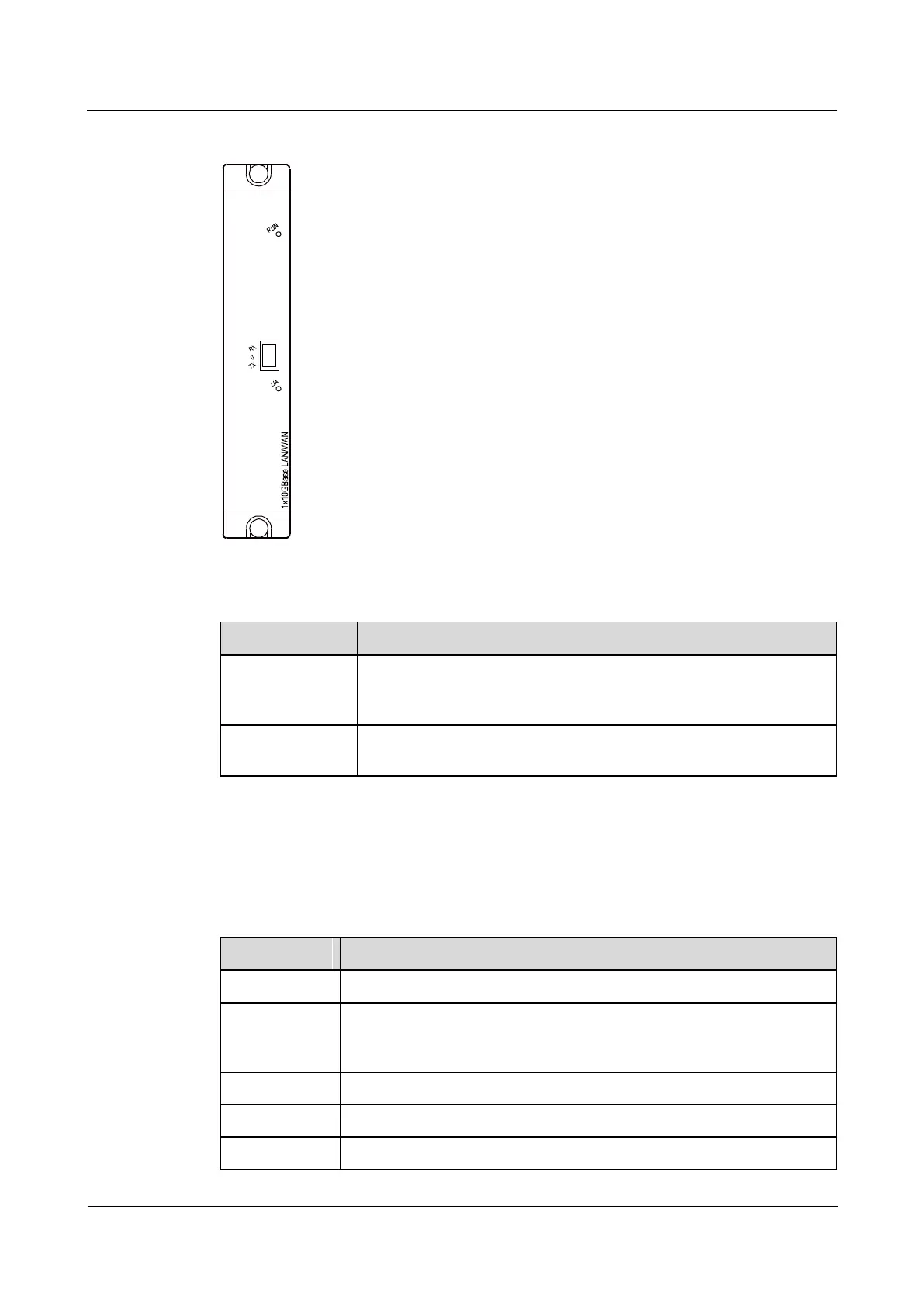

Figure 6-177 Panel appearance of the 1-port 10GE LAN/WAN FPIC
Table 6-502 Indicators on the panel of the 1-port 10GBase LAN/WAN-XFP FPIC
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state. If the indicator blinks twice every 1s (2 Hz), the
FPIC is in the alarm state.
LINK/ACT
indicator(green)
If the indicator is on, the link is Up. If the indicator is blinking, the
data is being read or written. If the indicator is off, the link is Down.
Interface Attributes
Table 6-503 lists the interface attributes of the 1-port 10GBase LAN/WAN-XFP FPIC.
Table 6-503 Interface attributes of the 1-port 10GBase LAN/WAN-XFP FPIC
Optical
interface
attributes
Compliant with the selected XFP optical module.(for the attributes of
XFP modules, see Table 6-504)
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
